BEST 1E7424C181RP3613 1-1/2 Inch Mortise Cylinder is an ideal choice for standard mortise applications, offering both durability and security. This 7-pin SFIC prep less core cylinder features a C181 straight cam, ensuring compatibility with Adams Rite locking systems. Crafted from high-quality bronze, it boasts a dark oxidized satin bronze oil-rubbed finish that not only enhances its aesthetic appeal but also provides excellent resistance to wear. Designed for commercial use, the cylinder accommodates door thicknesses ranging from 1-7/8" to 2-1/2", making it versatile for various installations. Its interchangeable core allows for easy rekeying and integration into existing BEST master key systems, enhancing overall security. A unique set screw mounts diagonally within the cylinder wall, securing it firmly in place when tightened, ensuring reliable performance. This cylinder is proudly made in the USA and comes with a limited three-year warranty, reflecting BEST’s commitment to quality. Weighing just 0.35 lbs., it is lightweight yet robust, perfect for busy environments. Whether upgrading security in a commercial building or replacing an existing component, the BEST 1E7424C181RP3613 is a dependable option that combines functionality with style.

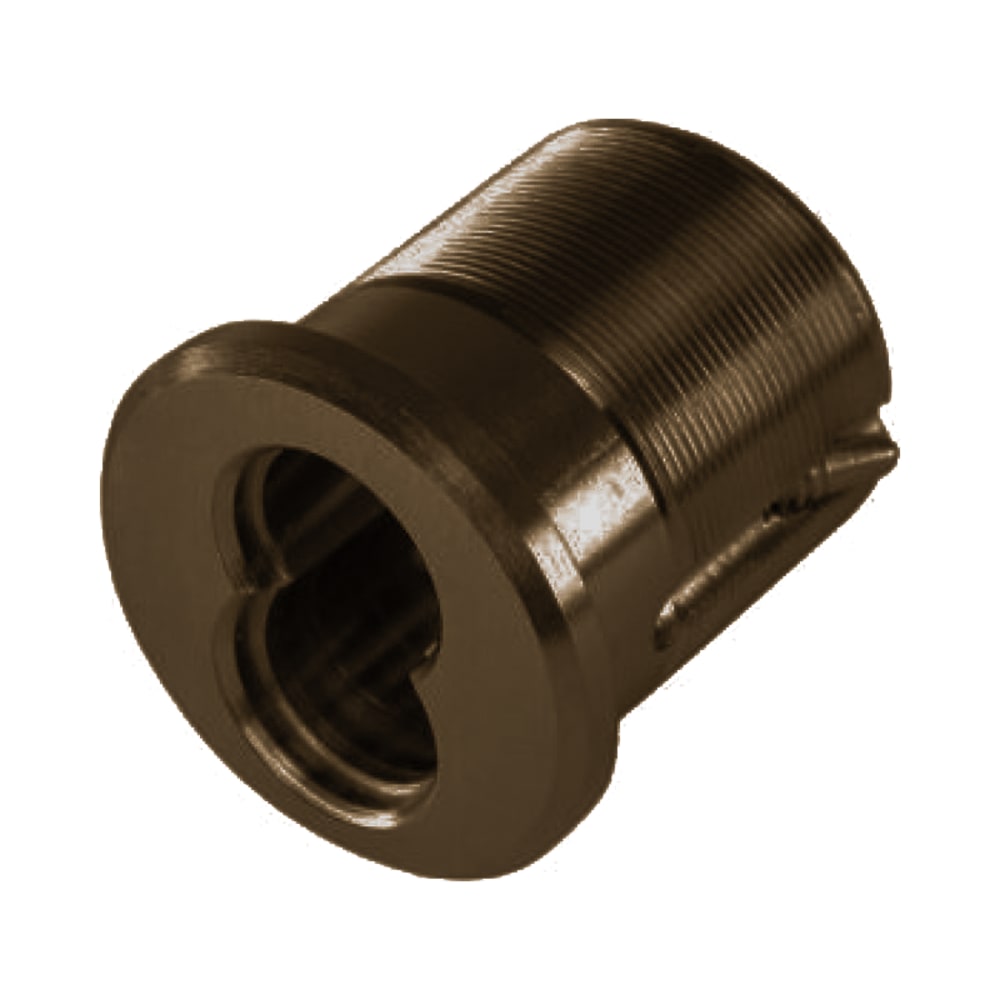

1-1/2 Inch Mortise Cylinder
Standard 1-1/2" Mortise Cylinder, 7-Pin SFIC Prep Less Core, C181 Straight Cam, For Use With Adams Rite, Dark Oxidized Satin Bronze Oil Rubbed Finish
Standard mortise applications require use of BEST's 1E series cylinders. BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes. Additional security is provided by a set screw that mounts diagonally in the cylinder wall and when tightened, holds the cylinder securely in the housing. BEST mortise cylinders feature the BEST interchangeable core and may be masterkeyed into any existing BEST system.
BEST cylinders are machined from brass or bronze bar stock and are available in a variety of finishes.
Baa Qualified: Yes
Base Material: Bronze
Cam Number: C181
Cam Type: Straight
Commercial Residential: Commercial
Country of origin: USA
Cylinder Length: 1-1/2"
Cylinder Type: 7-Pin SFIC Prep Less Core
Door Thickness: 1-7/8" to 2-1/2"
Finish: 613/US10B
Finish Family: Dark Bronze
For Use With: Adams Rite
Function: Standard
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Options: Standard 1E-R2/1E-R5 Ring Package
Origin: USA
Pack Height: 1.75"
Pack Height 2: 3.25"
Pack Length: 2.88"
Pack Length 2: 9.5"
Pack Qty: 1
Pack Volume: 8.8 in³
Pack Volume 2: 254.72 in³
Pack Width: 1.75"
Pack Width 2: 8.25"
Pins: 7
Series: E Series Cylinders
Ship Weight: 0.35 lbs.
Subtype: Mortise Cylinder
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 20
