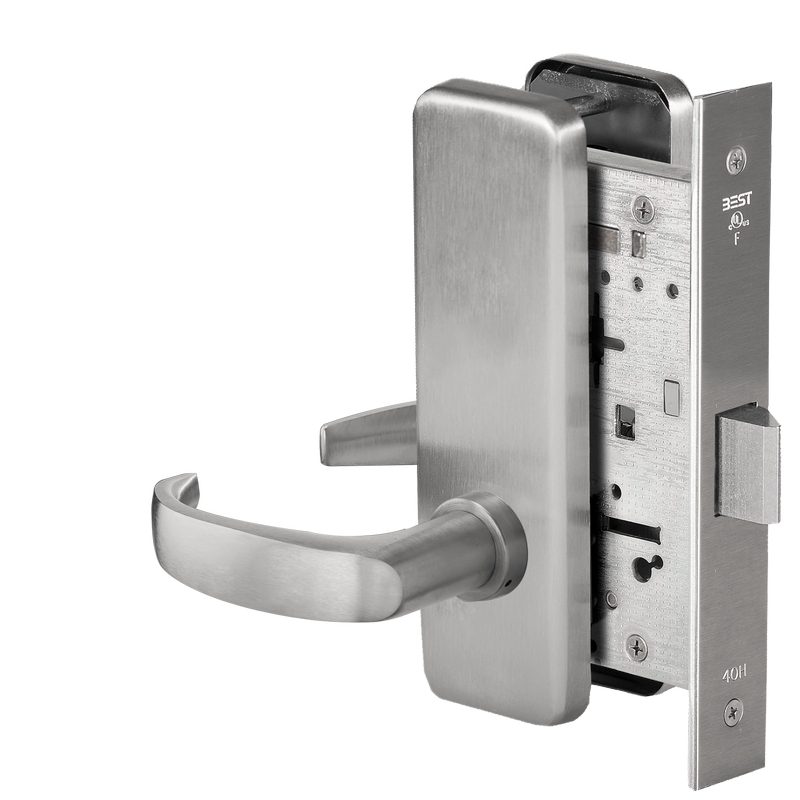

BEST 45H0N14J630 Grade 1 Passage Lock offers a robust security solution designed for high-traffic commercial environments. This Grade 1 mortise lock features a non-keyed, satin stainless steel finish that not only enhances aesthetic appeal but also ensures long-lasting durability. The 14 lever design, paired with a J escutcheon, provides both style and functionality. Engineered for superior strength, the 45H Series includes a solid one-piece stainless steel latch, which provides 50% more surface contact with the strike, significantly enhancing security. Its roller bearing hub mechanism ensures smooth, wear-resistant operation, making it ideal for frequent use. The precision-engineered components and enhanced durability mean reduced wear on the strike, extending the lock's cycle life. Field-reversible handing allows for easy installation and reconfiguration, while the self-aligning trim simplifies alignment and assembly, making it an efficient choice for contractors. With a 3-hour fire rating and compliance with ANSI A156.13, this mortise lock is a reliable choice for any commercial application. The 45H0N14J630 not only meets the demands of modern security needs but does so with a focus on low maintenance, ensuring peace of mind for building professionals and homeowners alike.
Grade 1 Passage Mortise Lock, 14 Lever, J Escutcheon, Non-Keyed, Satin Stainless Steel Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST's 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
Attributes
Ansi: F01
Ansi Function: F01 - Passage/Closet
Baa Qualified: Yes
Base Material: Stainless Steel
Bolt Projection: 3/4" Latch
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 630/US32D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: N-Passage
Function Family: Passage
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 14
Leverknob Design: 14 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8" x 1-1/4"
Manufacturer Function: Passage
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pocket Dimensions: 6-5/8" x 4-1/4"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-15/16"
Rose Escutcheon: Escutcheon
Roseescutcheon Design: J Escutcheon
Roseescutcheon Dimensions: 2-9/32" x 7-1/2"
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8"
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
