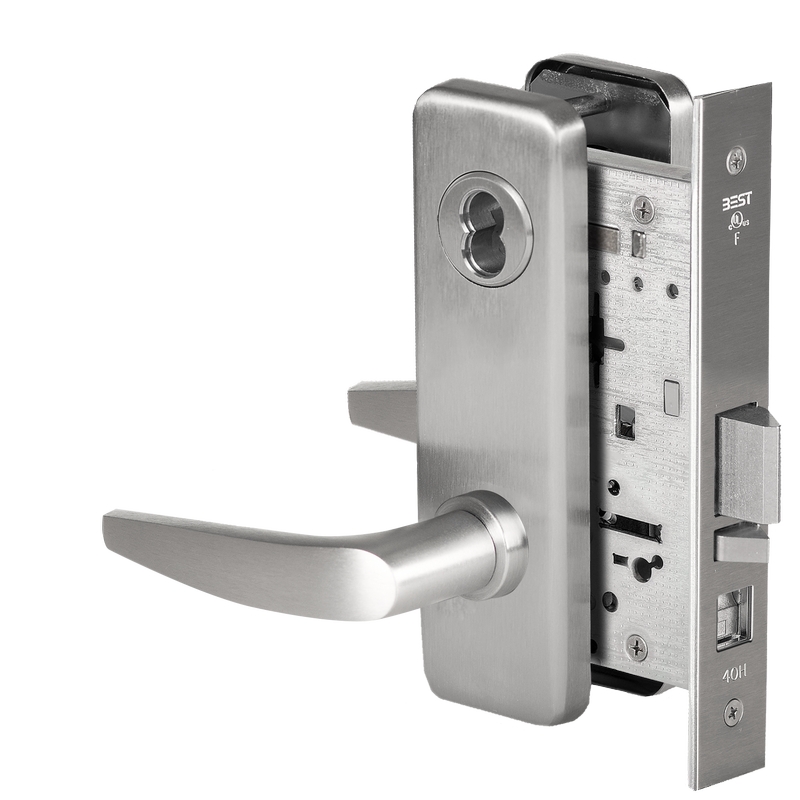

BEST 45H7A16J626 Grade 1 Office Lock offers a robust security solution tailored for commercial and industrial applications. This Grade 1 mortise lock features a 16 lever design with a J escutcheon, and its SFIC housing is less core, allowing for flexibility in key management. Its satin chrome finish not only enhances durability but also adds a touch of modern elegance to any office environment. Constructed with a solid one-piece stainless steel latch, this lock provides 50% more surface contact with the strike, ensuring superior strength and security. The precision-engineered components and roller bearing hub mechanism deliver smooth, wear-resistant operation, making it ideal for high-traffic areas. With a case made from corrosion-resistant 0.095" cold-rolled steel, the 45H series is built to last. Installation is straightforward, thanks to the field-reversible latch that allows for easy handing changes without opening the case. The self-aligning trim simplifies installation, ensuring a fast and accurate fit. Additionally, the design is visually compatible with various architectural styles, making it a versatile choice for any setting. Enjoy peace of mind with the BEST 45H7A16J626, a low-maintenance lock that combines security, durability, and ease of use.
Grade 1 Office Mortise Lock, 16 Lever, J Escutcheon, SFIC Housing Less Core, Satin Chrome Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST's 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
Attributes
Ansi: F04
Ansi Function: F04 - Entry/Office
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 3/4" Latch
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: A-Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 16
Leverknob Design: 16 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8" x 1-1/4"
Manufacturer Function: Office
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pins: 7
Pocket Dimensions: 6-5/8" x 4-1/4"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-15/16"
Rose Escutcheon: Escutcheon
Roseescutcheon Design: J Escutcheon
Roseescutcheon Dimensions: 2-9/32" x 7-1/2"
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8"
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
