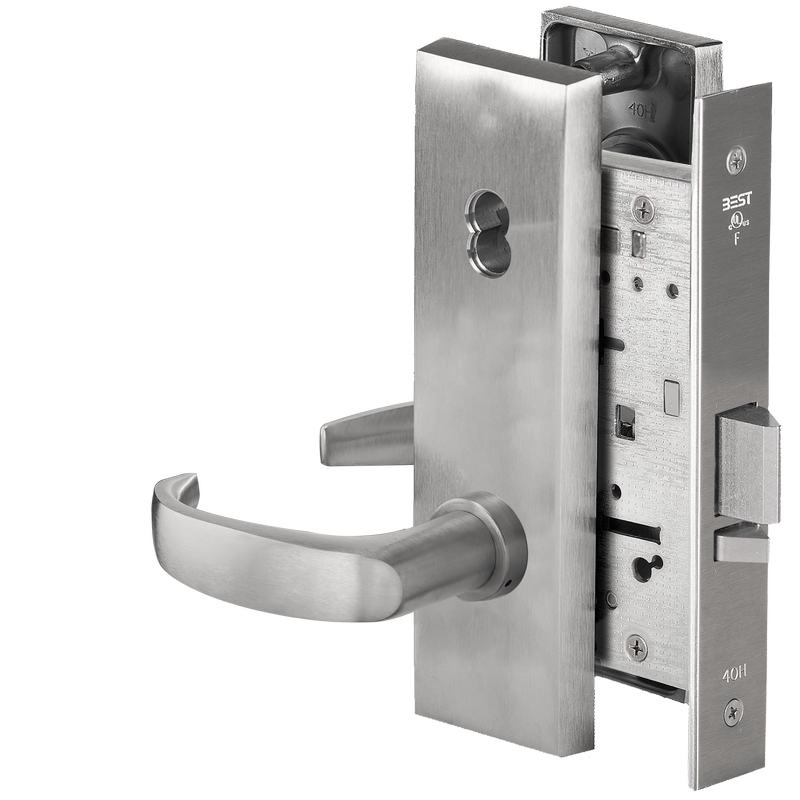

BEST 45H7D14N626 Grade 1 Storeroom Lock offers exceptional strength and reliability for commercial and industrial applications. Designed as a Grade 1 storeroom mortise lock, it features a robust 14 lever design and a satin chrome finish, ensuring both durability and aesthetic appeal. The lock is equipped with an SFIC housing, allowing for easy core changes, and its field-reversible handing simplifies installation. This heavy-duty lock prioritizes security without compromising free egress. Its solid one-piece stainless steel latch provides 50% more surface contact with the strike, enhancing strength and security. The precision-engineered roller bearing hub mechanism ensures smooth, wear-resistant operation, enhancing longevity under high traffic conditions. Constructed from 0.095" cold rolled steel with a corrosion-resistant coating, the 45H7D14N626 is built to withstand the rigors of daily use. Its compatibility with various architectural styles is enhanced by a selection of lever styles and trims, making it a versatile choice for different environments. With a limited lifetime warranty, this lock meets ANSI A156.13 standards and is UL listed, ensuring it meets the highest safety and security requirements. Choose the BEST 45H7D14N626 for a reliable locking solution that combines advanced functionality with ease of installation.
Grade 1 Storeroom Mortise Lock, 14 Lever, N Escutcheon, SFIC Housing Less Core, Satin Chrome Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST's 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
Attributes
Ansi: F07
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 3/4" Latch
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: D-Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 14
Leverknob Design: 14 Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8" x 1-1/4"
Manufacturer Function: Storeroom
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pins: 7
Pocket Dimensions: 6-5/8" x 4-1/4"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-15/16"
Rose Escutcheon: Escutcheon
Roseescutcheon Design: N Escutcheon
Roseescutcheon Dimensions: 2-1/8" x 8"
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8"
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
