BEST 45H7D16M625 Grade 1 Storeroom Lock combines exceptional strength and reliability, making it an ideal choice for commercial and industrial settings. This Grade 1 mortise lock features a durable, bright chrome finish and an M escutcheon design, ensuring both aesthetic appeal and robust performance. With a field-reversible function, installation is straightforward and adaptable to various door configurations. Engineered for high-traffic applications, the 45H series offers a solid one-piece stainless steel latch that increases surface contact with the strike, enhancing security. Its roller bearing hub mechanism ensures smooth, wear-resistant operation, while the precision-engineered latch curve minimizes wear and extends the lock's cycle life. The lock's case, cover, and armored front are crafted from 0.095" cold-rolled steel with a corrosion-resistant coating, ensuring long-lasting durability. The 45H7D16M625 is designed with versatility in mind, available in a variety of lever styles and trims to complement different architectural aesthetics. With a limited lifetime warranty, this mortise lock guarantees reliable performance and low maintenance, making it a valuable addition to any security system. Ideal for storerooms and exit areas, the lock embodies strength, functionality, and ease of use.

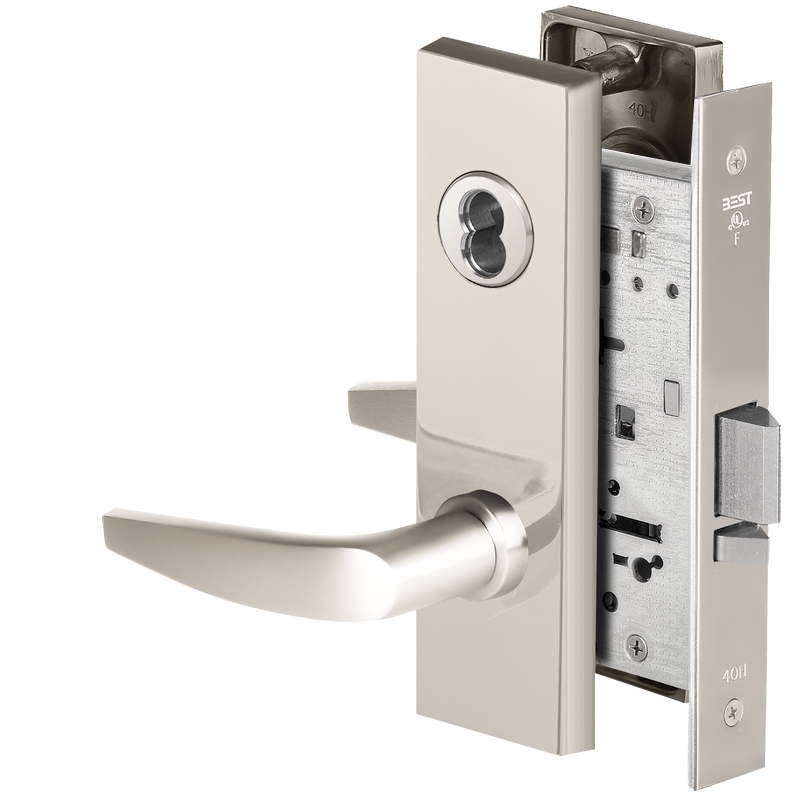

Grade 1 Storeroom Mortise Lock, 16 Lever, M Escutcheon, SFIC Housing Less Core, Bright Chrome Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST's 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
Attributes
Ansi: F07
Ansi Function: F07 - Storeroom/Exit
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 3/4" Latch
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: D-Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 16
Leverknob Design: 16 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8" x 1-1/4"
Manufacturer Function: Storeroom
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pins: 7
Pocket Dimensions: 6-5/8" x 4-1/4"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-15/16"
Rose Escutcheon: Escutcheon
Roseescutcheon Design: M Escutcheon
Roseescutcheon Dimensions: 2-1/8" x 8"
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8"
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
