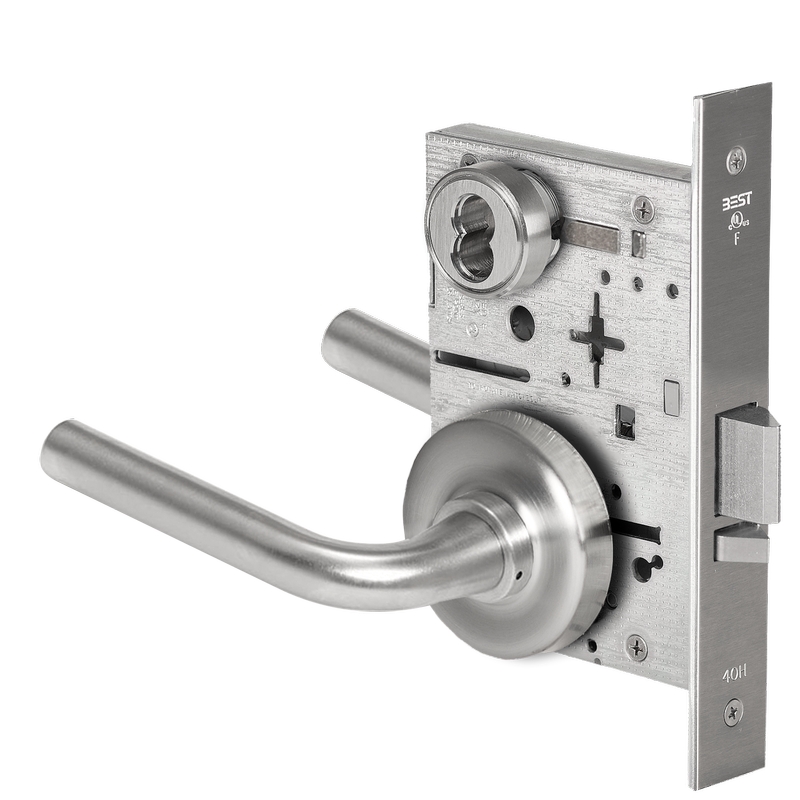

BEST 45H7R12R626 Grade 1 Classroom Lock offers exceptional reliability and security, making it a top choice for commercial and industrial applications. This Grade 1 classroom mortise lock features a 12 lever design, a satin chrome finish, and field-reversible handing, ensuring versatility in any setting. The lock is engineered with a solid one-piece stainless steel latch that provides 50% more surface contact with the strike, enhancing overall strength and security. Designed for high traffic areas, the 45H series boasts a roller bearing hub mechanism for smooth, wear-resistant operation. Its premium construction includes a case, cover, and armored front made from 0.095" cold rolled steel, coated for corrosion resistance. Installation is streamlined with features that simplify alignment and handing changes, allowing for quicker setup without compromising performance. The 45H7R12R626 is compatible with various architectural styles, thanks to its wide range of lever designs and trims. Ideal for classrooms, it ensures free egress while maintaining robust security. With a limited lifetime warranty, this lock represents a durable, low-maintenance solution that stands up to the demands of everyday use. Choose the BEST 45H7R12R626 for a dependable security solution that combines functionality with modern aesthetics.
Grade 1 Classroom Mortise Lock, 12 Lever, R Rose, SFIC Housing Less Core, Satin Chrome Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST's 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
Attributes
Ansi: F05
Ansi Function: F05 - Classroom
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 3/4" Latch
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: R-Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 12
Leverknob Design: 12 Lever
Leverknob Design Family: Straight Lever
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8" x 1-1/4"
Manufacturer Function: Classroom
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pins: 7
Pocket Dimensions: 6-5/8" x 4-1/4"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-15/16"
Rose Escutcheon: Rose
Roseescutcheon Design: R Rose
Roseescutcheon Dimensions: 2-3/4"
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8"
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
