BEST 45H7W4J626 Grade 1 Storeroom Lock offers a robust solution for commercial security needs. This Grade 1 Mortise Lock features a 4 Knob design with a J Escutcheon and is compatible with SFIC housing, minus the core. Finished in a sleek satin chrome, it provides a professional appearance while ensuring ease of maintenance and installation. Designed for high-traffic environments, the 45H series combines superior strength with reliable performance. Its solid one-piece stainless steel latch grants 50% more surface contact with the strike, enhancing overall security. The roller bearing hub mechanism ensures smooth, wear-resistant operation, making it ideal for frequent use. Constructed from 0.095" cold rolled steel with a corrosion-resistant coating, this lock is built to last. The field-reversible handing simplifies installation, while the precision-engineered latch promotes durability and reduces wear over time. With a fire rating of 3 hours, the BEST 45H7W4J626 is not only a secure choice but also compliant with safety standards. Its versatile design accommodates various architectural styles, making it suitable for a wide range of applications. Backed by a limited lifetime warranty, this storeroom lock is a dependable investment for any commercial setting.

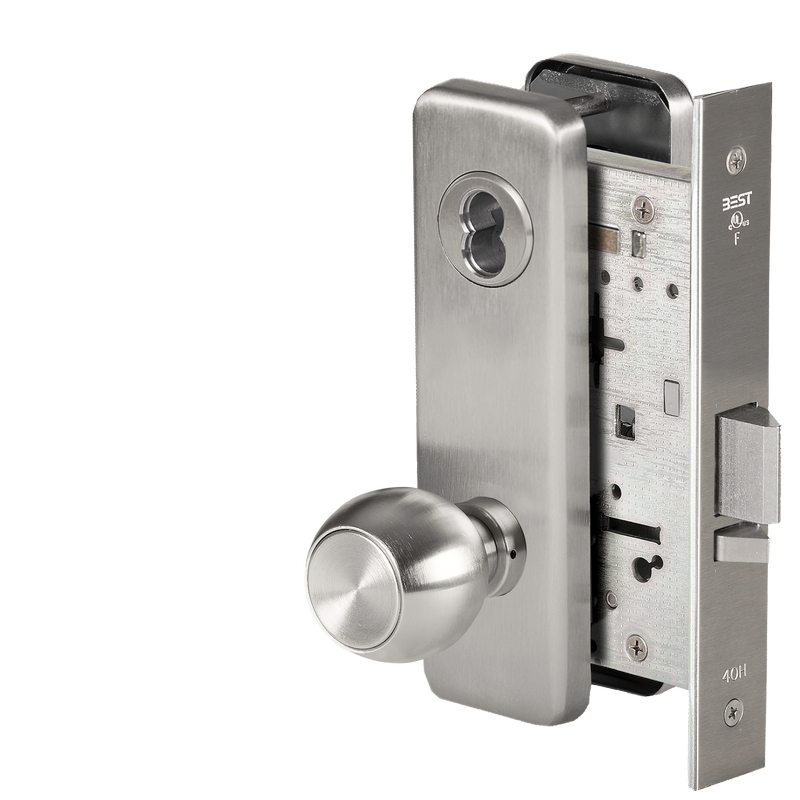

Grade 1 Storeroom Mortise Lock, 4 Knob, J Escutcheon, SFIC Housing Less Core, Satin Chrome Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST's 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
Attributes
Ansi: F30
Ansi Function: F30 - Utility/Asylum/Institutional
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 3/4" Latch
Box Depth Fraction: 11-1/2"
Box Height Fraction: 3"
Box Width Fraction: 9-3/4"
Burglar Rated: No
Case Dimensions: 5-7/8" x 4-1/16"
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Double Cylinder
Door Thickness: 1-3/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: W-Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Knob
Lever Knob Design Name: 4
Leverknob Design: 4 Knob
Leverknob Design Family: Flat Knob
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8" x 1-1/4"
Manufacturer Function: Storeroom
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3"
Pack Height 2: 12.25"
Pack Length: 11.5"
Pack Length 2: 12.75"
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75"
Pack Width 2: 10.5"
Pins: 7
Pocket Dimensions: 6-5/8" x 4-1/4"
Product Height: 3"
Product Length: 11.5"
Product Width: 9.75"
Projection: 2-7/8"
Rose Escutcheon: Escutcheon
Roseescutcheon Design: J Escutcheon
Roseescutcheon Dimensions: 2-9/32" x 7-1/2"
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8"
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
