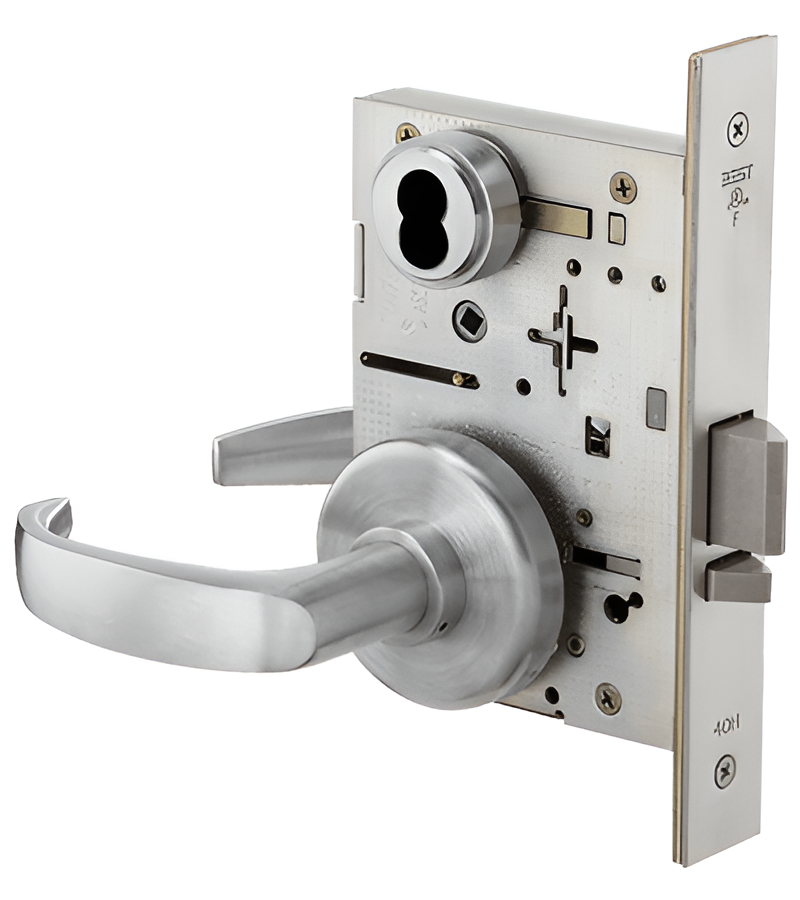

Best 45HW7-DEU-14H-626-RQE-24V Electrified Mortise Lock, Fail Secure, 24VDC, Curved Lever, Satin Chrome

Best Access Solutions Inc 45HW7-DEU-14H-626-RQE-24V Electrified Mortise Lock is designed for demanding commercial and industrial environments where security and reliability are paramount. This heavy-duty lock features a fail secure design and operates on 24VDC, making it ideal for access control systems while ensuring free egress. The curved lever with H rose (2-3/4" diameter) enhances both functionality and aesthetics. Constructed from durable 0.095" cold rolled steel, the lock is equipped with a solid one-piece stainless steel anti-friction latch that boasts 50% more surface contact with the strike, providing superior strength. Its unique reversible latch allows for easy handing changes without opening the case, and the armored front enhances lateral strength, making it resistant to break-in attempts. With a stainless steel auxiliary bolt and visual indicators showing locked and unlocked states, the 45HW7 is versatile and user-friendly. The lock is SFIC prepared, allowing for customizable master keying and quick keying changes, ensuring that your property remains secure and adaptable to your needs. Overall, the Best Access Solutions Inc 45HW7-DEU-14H-626-RQE-24V is a robust solution that combines advanced technology with ease of installation and low maintenance, making it a top choice for security professionals and discerning homeowners alike.

Electrified Mortise Lock, Fail Secure, 24VDC, Curved Lever with H Rose (2-3/4in Diameter), Request to Exit (REX), SFIC Prep, Less Core, 626/US26D Satin Chrome

When you want the toughest mechanical security for your building, you want the 40H series from Best. With its advanced features, improved functionality and unique versatility, this durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 40H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. The Best interchangeable core allows for customized master keying and quick keying changes. And its tough steel frame accommodates heavy traffic, while standing strong against break-in attempts. All the while, the 40H remains a low maintenance product that is easy to reconfigure and easy to install.

Features:

• Solid one-piece stainless steel anti-friction latch provides 50% more surface contact with strike for superior strength and security. Reversible latch rotates 180 degrees for easy handing change without opening case. Precision-engineered curve provides enhanced cycle life with reduced wear to the strike.
• Non-handed cylinder retainer.
• Armored front completely surrounds latch and deadbolt providing increased lateral strength. Staked assembly design allows the armored front to self align with the door bevel during installation.
• Enhanced case integrity achieved through four case cover screws (one at each corner), plus interlocking armored front and cover design at the latch.
• Roller bearing hub mechanism provides smooth, wear resistant operation.
• Locking toggle includes clear indication of "locked" and "unlocked" states.
• 40H case, cover, and armored front manufactured from 0.095" cold rolled steel for strength and durability.
• Fusible link.
• Four position hub toggle design determines whether each hub is always locked, always unlocked, or locked by key for easy handing change without opening case.
• Lever return spring mechanism located in trim for enhanced protection against lever droop, providing a firm, positive return of the lever to the horizontal position.
• Self-aligning trim mechanism for fast, easy, and accurate installation.
• Curved lip strike and strike box assembly provides an aesthetic, non-handed solution to complement field reversible case.
• Solid machined cylinder rings with wavy washer provides resistance to wrenching of cylinder. Cylinder security screw prevents removal of cylinder without first removing interchangeable core.
• Visual indicator options show a padlock icon open for unlocked and padlock icon closed and painted red for locked.
• Non-handed stainless steel auxiliary bolt for ease of changing hand.

Functions:

• A: Office
• ANSI F04
• Latch operated by: Rotating inside lever. Rotating outside lever– only when locking toggle is in unlocked position. Turning key in outside cylinder.
• Locked by: Placing locking toggle in locked position
• Unlocked by: Placing locking toggle in unlocked position
• Locked by: Cannot be locked
• Unlocked by: Always unlocked
• D: Storeroom
• ANSI F07
• Latch operated by: Rotating inside lever. Turning key in outside cylinder.
• Locked by: Always locked
• Unlocked by: Cannot be unlocked
• Locked by: Cannot be locked
• Unlocked by: Always unlocked
• L: Privacy
• ANSI F19
• Latch operated by: Rotating inside lever. Rotating outside lever only when deadbolt is retracted.
• Deadbolt operated by: Turning the emergency key, turning inside turn lever. (Rotating inside knob/lever retracts deadbolt and latch simultaneously.)
• Locked by: Turning inside turn lever. Turning the emergency key.
• Unlocked by: Turning inside turn lever. Rotating inside lever retracts latch and dead-bolt simultaneously. Turning the emergency key.
• Locked by: Cannot be locked
• Unlocked by: Always unlocked
• N: Passage
• ANSI F01
• Latch operated by: Rotating inside or outside lever
• Locked by: Cannot be locked
• Unlocked by: Cannot be unlocked
• Locked by: Cannot be locked
• Unlocked by: Cannot be locked
• R: Classroom
• ANSI F05
• Latch operated by: Rotating inside lever. Rotating outside lever only when unlocked by key. Turning key in outside cylinder.
• Locked by: Turning key in outside cylinder
• Unlocked by: Turning key in outside cylinder
• Locked by: Cannot be locked
• Unlocked by: Always unlocked
• T: Dormitory etc.
• ANSI F13
• Latch operated by: Rotating inside lever. Rotating outside lever—only when deadbolt is retracted. Turning key in out side cylinder.
• Deadbolt operated by: Turning key in outside cylinder. Inside turn lever. Inside lever retracts deadbolt and latch simultaneously.
• Locked by: Turning key in outside cylinder. Turning inside turn lever.
• Unlocked by: Turning key in outside cylinder. Turning inside turn lever. Rotating inside lever.
• Locked by: Cannot be locked
• Unlocked by: Always unlocked

Specifications:

• Auxiliary bolt: Stainless steel, non-handed.
• Backset: 2-3/4"
• Case: 0.095" cold rolled steel, 5- 7/8" H x 7/8" D x 4-1/16" W. Steel is zinc dichromate plated for corrosion protection.
• Deadbolt: Stainless steel, 1" throw.
• Latchbolt: Solid stainless steel, 3/4" throw. Latch is oil-impregnated for anti-friction operation. Reversible without opening case.
• Door Thickness: Standard lock configuration designed for doors 1-3/4" thick. Thick door configuration available for doors up to 5" thick (specify thickness when ordering).
• Faceplate: Stainless steel, brass or bronze material, 8" H x 1-1/4" W x 1/16" T. Lock face automatically adjusts to proper bevel during installation.
• #4 Knob: Diameter – 2-1/8"; projection on door – 2-7/8" material machined from solid brass or bronze.
• Roses: Wrought brass, bronze, or stainless steel base material.
• H: Flat w/round edge, 2-3/4" diameter.
• R: Contoured w/round edge, 2-3/4" diameter.
• S: Flat w/beveled edge, 3-1/2" diameter.
• Escutcheons: J – Wrought brass, bronze, or stainless steel base material, 7-1/2" H x 2-9/32" W x 17/32" T. M & N – forged brass or bronze, 8" H x 2-1/8" W x 37/64" T, through bolt mounted (no exposed screws outside). M – standard cylinder; N – concealed cylinder.
• Vandal Trim: VT– Vandal trim is available in standard finish for H, J, M, N, R, and S trims in either #14 or #15 levers. Note: Not available in single or dummy trim functions. If compliance to California building code Title 19 & 24 is required, the #14 lever design must be specified.
• Visual Indicators: VIN– Visual indication uses an unlocked padlock or locked padlock image with red background to indicate lock state. VIT–Visual indication uses a thumb-turn with color coded locked and unlocked icons – red indicates door is secure and green indicates door is unsecure.

Finishes:

• 605 - bright brass, clear coated
• 606 – satin brass, clear coated
• 611 – bright bronze, clear coated
• 612 – satin bronze, clear coated
• 613 – oxidized satin bronze, oil rubbed
• 618 – bright nickel plated, clear coated
• 619 – satin nickel plated, clear coated
• 622 – flat black coated
• 625 – bright chromium plated
• 626 – satin chromium plated
• 629 – bright stainless steel
• 630 – satin stainless steel
• 690 – dark bronze coated
