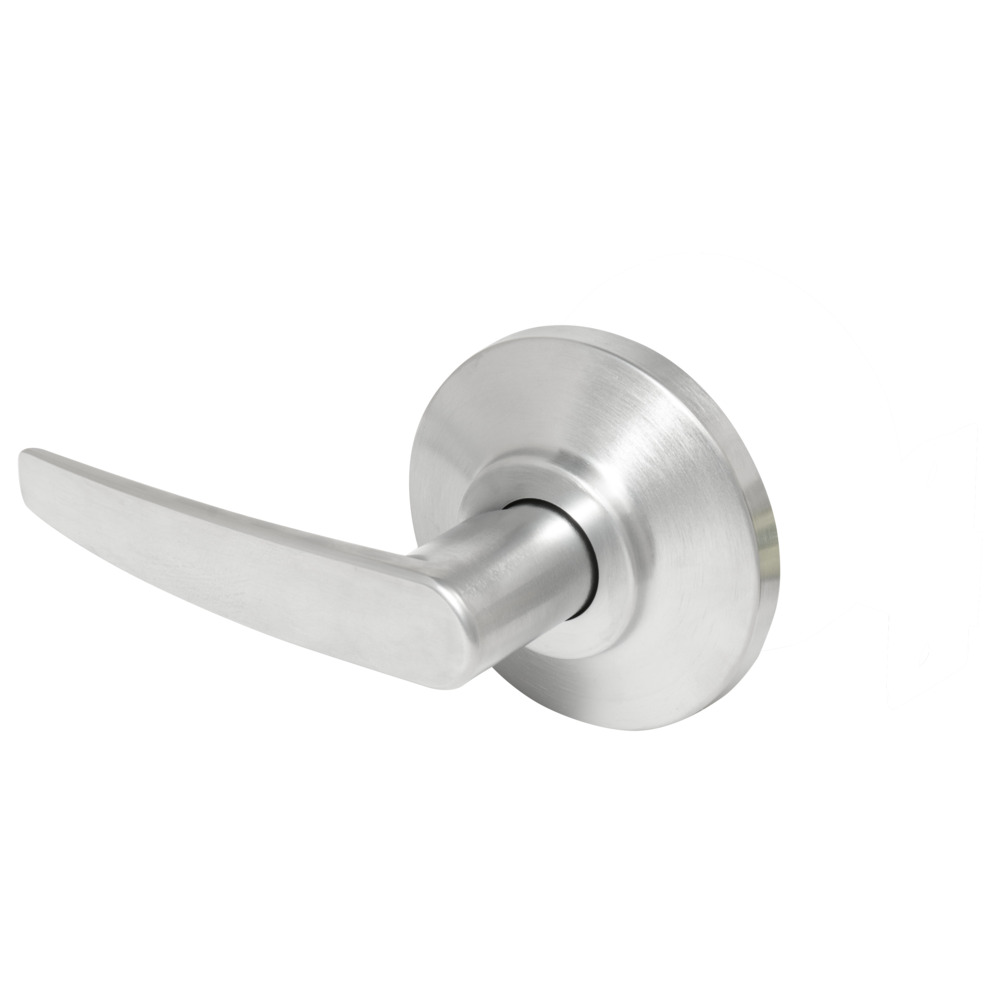

Best 7KC01DT16D626 Grade 2 Single Dummy Lock

BEST 7KC01DT16D626 Grade 2 Single Dummy Lock offers a reliable and stylish solution for non-keyed door applications. With a Grade 2 rating, this single dummy cylindrical lock is designed to meet high standards of performance and safety. The sleek satin chrome finish not only enhances its aesthetic appeal but also ensures durability against wear and tear. This lock is suitable for use on 3-hour A label single swinging doors, making it a versatile option for various commercial settings. The 7KC series features an interchangeable core for quick rekeying, ensuring your security needs are always met. The 5 1/4" long lever handle provides ease of use, with a projection of 2 1/2" that fits seamlessly on doors ranging from 1 3/8" to 2" thick. ADA compliance ensures that this lock is accessible for all users, while the robust construction includes component parts made from brass, bronze, or zinc, and internal parts of zinc dichromated steel. The lock's 1/2" throw deadlocking latch adds an extra layer of security, and the concealed screws provide a clean installation look. Ideal for commercial applications, the BEST 7KC01DT16D626 is a dependable choice for professionals seeking both functionality and style in their door hardware solutions.

Grade 2 Single Dummy Lock

Grade 2 Single Dummy Cylindrical Lock, 16 Lever, Non-Keyed, Satin Chrome Finish, Non-handed

7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4' x 8' ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.

The 7KC Series has very versatile trims and has several finishes available too it your needs.

The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.

• Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
• Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
• Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
• Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
• Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
• Rose– D– 3 1/2" diameter mounting screws concealed.
• Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
• Door thickness– 1 3/8" to 2" .

NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
