Best 7KC27D14DS3606 Grade 2 Storeroom Lock

BEST 7KC27D14DS3606 Grade 2 Storeroom Lock offers robust security tailored for commercial applications. This Grade 2 cylindrical lock features a 14 lever design with a satin brass finish, ensuring both durability and aesthetic appeal. The lock is non-handed, making it adaptable to various door configurations, and is designed for use on single swinging doors up to 4' x 8'. Certified by Underwriters Laboratories for 3-hour fire-rated doors, the 7KC series complies with ANSI A156.3 standards, California Administrative Code Title 19 and 24, and Illinois Accessibility Standards, ensuring it meets stringent safety regulations. Its quick rekeying capability with BEST interchangeable cores allows for easy maintenance and security upgrades. Constructed with a cylindrical chassis suitable for common door preparation, the lock features a 1/2" throw deadlocking latch, a 5 1/4" long curved return lever, and is crafted from quality materials including brass and zinc dichromated steel. The 7KC27D also accommodates door thicknesses from 1 3/8" to 2" and comes with a standard 3-year warranty. With its reliable performance and flexible installation options, the BEST 7KC27D14DS3606 is a prime choice for professionals seeking a dependable storeroom locking solution.

Grade 2 Storeroom Lock

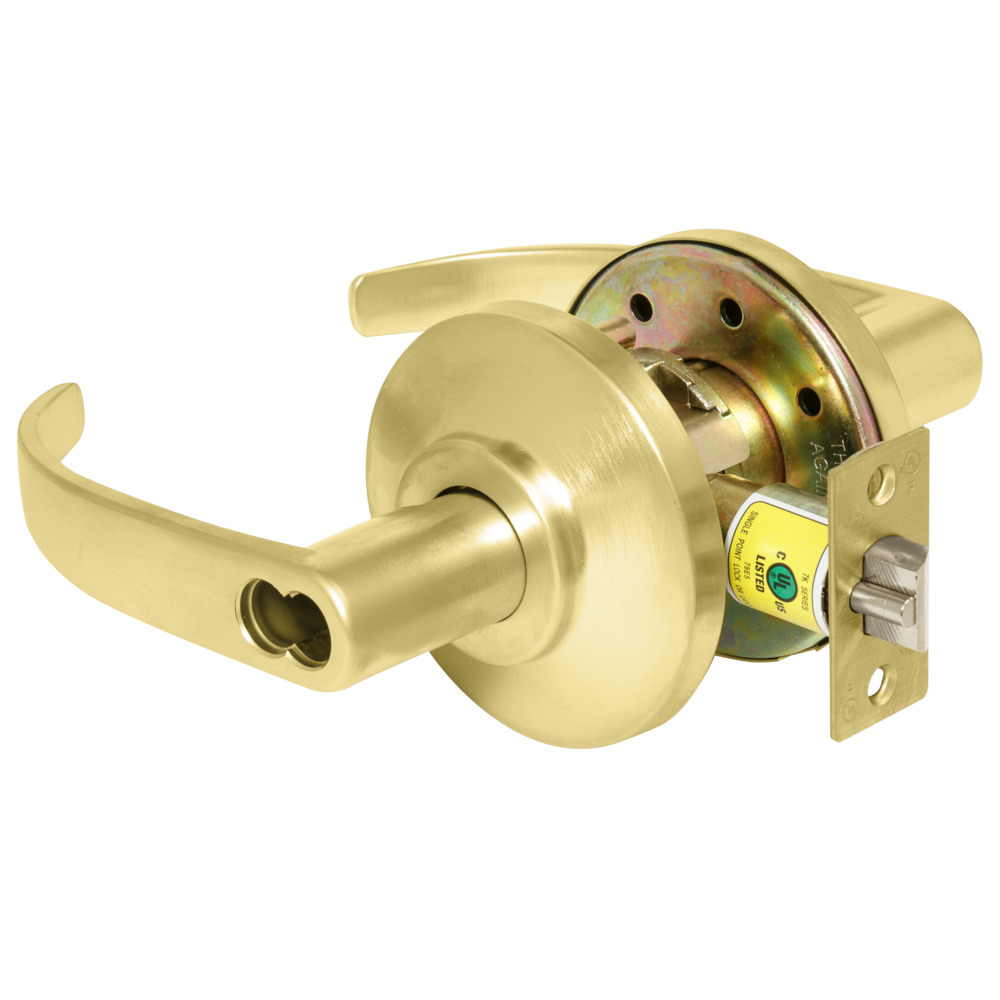

Grade 2 Storeroom Cylindrical Lock, 14 Lever, SFIC Less Core, Satin Brass Finish, Non-handed

7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4' x 8' ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.

The 7KC Series has very versatile trims and has several finishes available too it your needs.

The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.

• Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
• Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
• Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
• Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
• Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
• Rose– D– 3 1/2" diameter mounting screws concealed.
• Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
• Door thickness– 1 3/8" to 2" .

NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
