Best 7KC30N15DS3605 Grade 2 Passage Lock

BEST 7KC30N15DS3605 Grade 2 Passage Lock offers a robust solution for both residential and commercial applications. This Grade 2 passage cylindrical lock features a durable bright brass finish and a non-handed design, making it versatile for various door configurations. Designed for single swinging doors, it has been UL listed for use on 3-hour A label doors (4' x 8') and complies with ANSI A156.3 standards. The lock's strong construction includes a 1/2" throw deadlocking latch and a 5 1/4" long lever handle, ensuring reliability and ease of use. The 7KC series is equipped with BEST's interchangeable core system, allowing for quick rekeying, which is essential for maintaining security in frequently accessed areas. With a 2 1/8" bore for the lock housing and compatibility with door thicknesses from 1 3/8" to 2", installation is straightforward. ADA compliant and available in multiple finishes, including polished brass and satin bronze, this lock not only enhances security but also complements various design styles. The 3-year limited warranty underscores its quality, making the BEST 7KC30N15DS3605 an excellent choice for those seeking an efficient and stylish locking solution.

Grade 2 Passage Lock

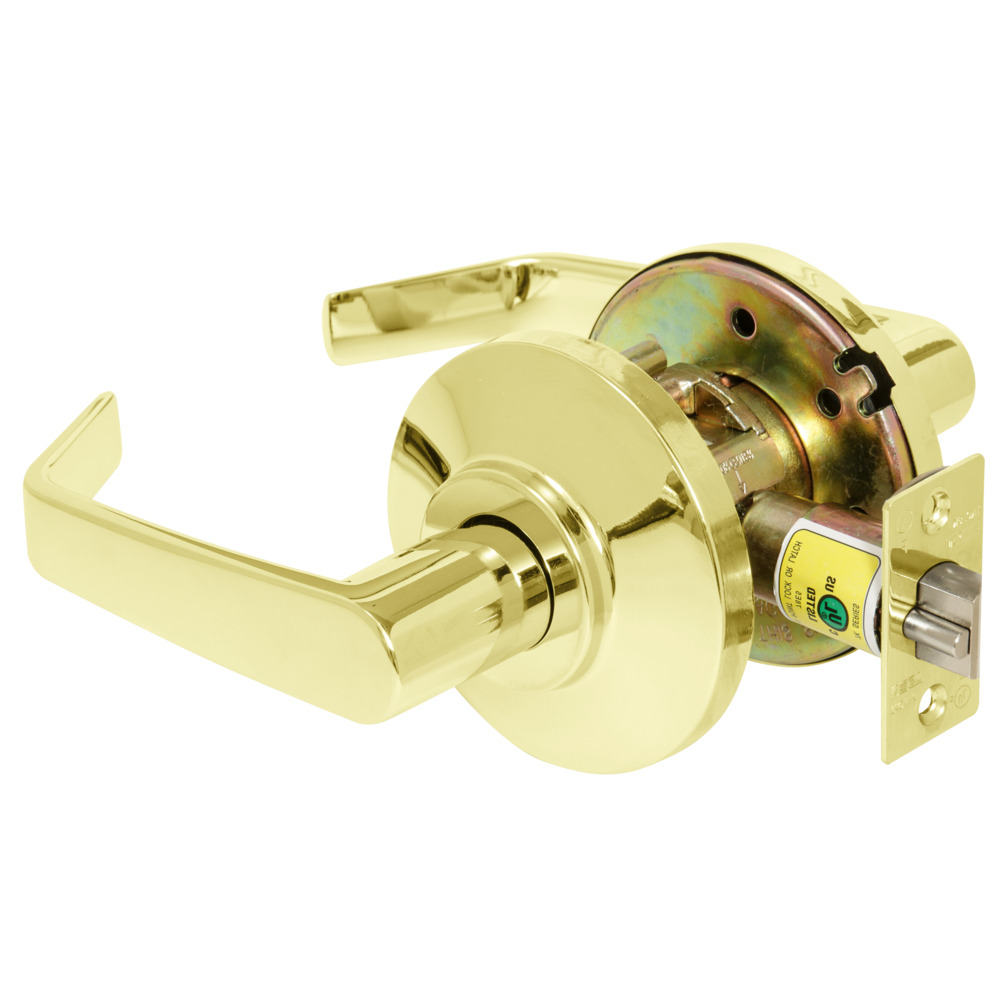

Grade 2 Passage Cylindrical Lock, 15 Lever, Non-Keyed, Bright Brass Finish, Non-handed

7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4' x 8' ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.

The 7KC Series has very versatile trims and has several finishes available too it your needs.

The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.

• Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
• Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
• Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
• Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
• Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
• Rose– D– 3 1/2" diameter mounting screws concealed.
• Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
• Door thickness– 1 3/8" to 2" .

NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
