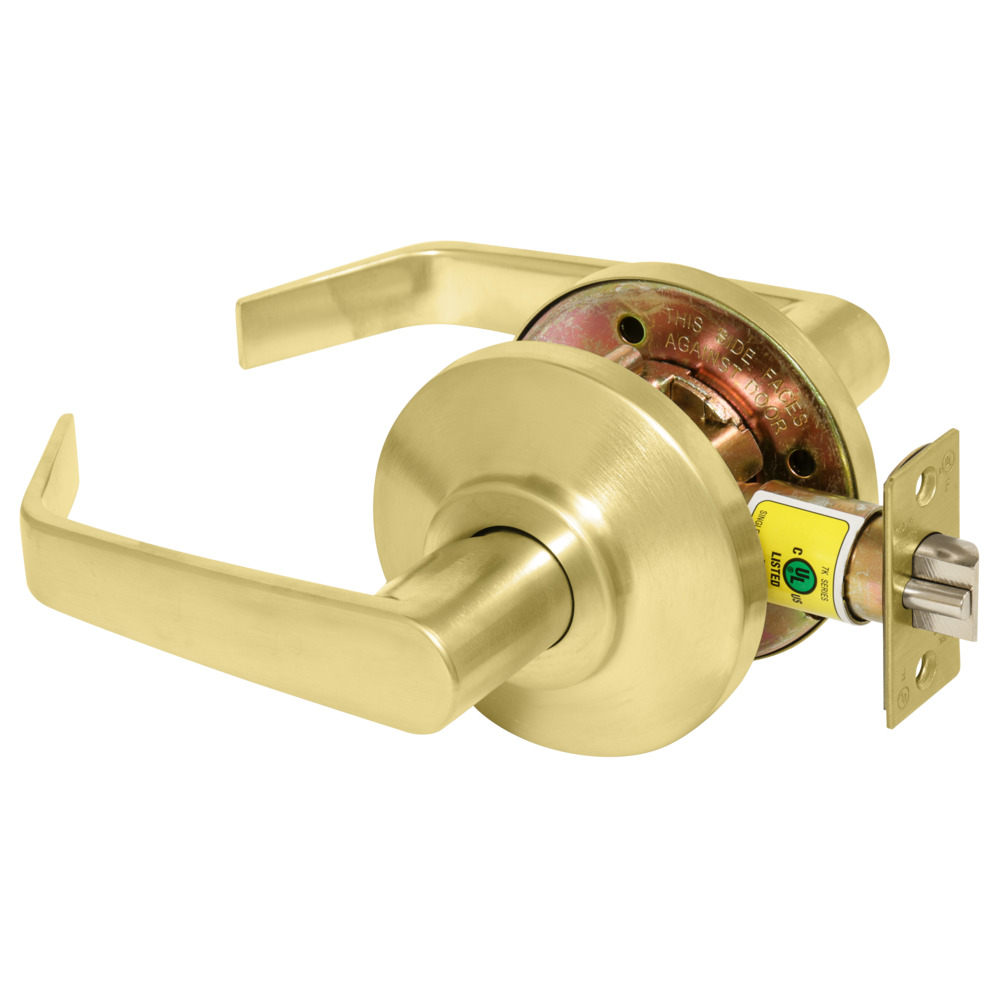

Best 7KC30N15DS3606 Grade 2 Passage Lock

BEST 7KC30N15DS3606 Grade 2 Passage Lock offers a reliable solution for commercial applications with its Grade 2 certification, ensuring quality and durability. This non-handed cylindrical lock features a sleek satin brass finish and a straight return lever design, making it an aesthetically pleasing addition to any door. Designed for use on single swinging doors measuring up to 4' x 8', the 7KC series is UL listed for fire ratings of up to 3 hours, providing peace of mind in emergency situations. Its ADA compliance guarantees accessibility for all users, while the quick rekeying capability with BEST interchangeable cores enhances security and convenience. The lock boasts a backset option of 2 3/8" or 2 3/4", accommodating various door preparations. With a 1/2" throw deadlocking latch and a robust construction of brass, bronze, and zinc, this passage lock is built to withstand everyday use. The 3 1/2" diameter rose conceals mounting screws for a clean finish. Ideal for commercial settings, the BEST 7KC30N15DS3606 Grade 2 Passage Lock combines functionality, security, and style, making it an excellent choice for professionals and homeowners alike.

Grade 2 Passage Lock

Grade 2 Passage Cylindrical Lock, 15 Lever, Non-Keyed, Satin Brass Finish, Non-handed

7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4' x 8' ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.

The 7KC Series has very versatile trims and has several finishes available too it your needs.

The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.

• Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
• Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
• Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
• Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
• Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
• Rose– D– 3 1/2" diameter mounting screws concealed.
• Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
• Door thickness– 1 3/8" to 2" .

NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
