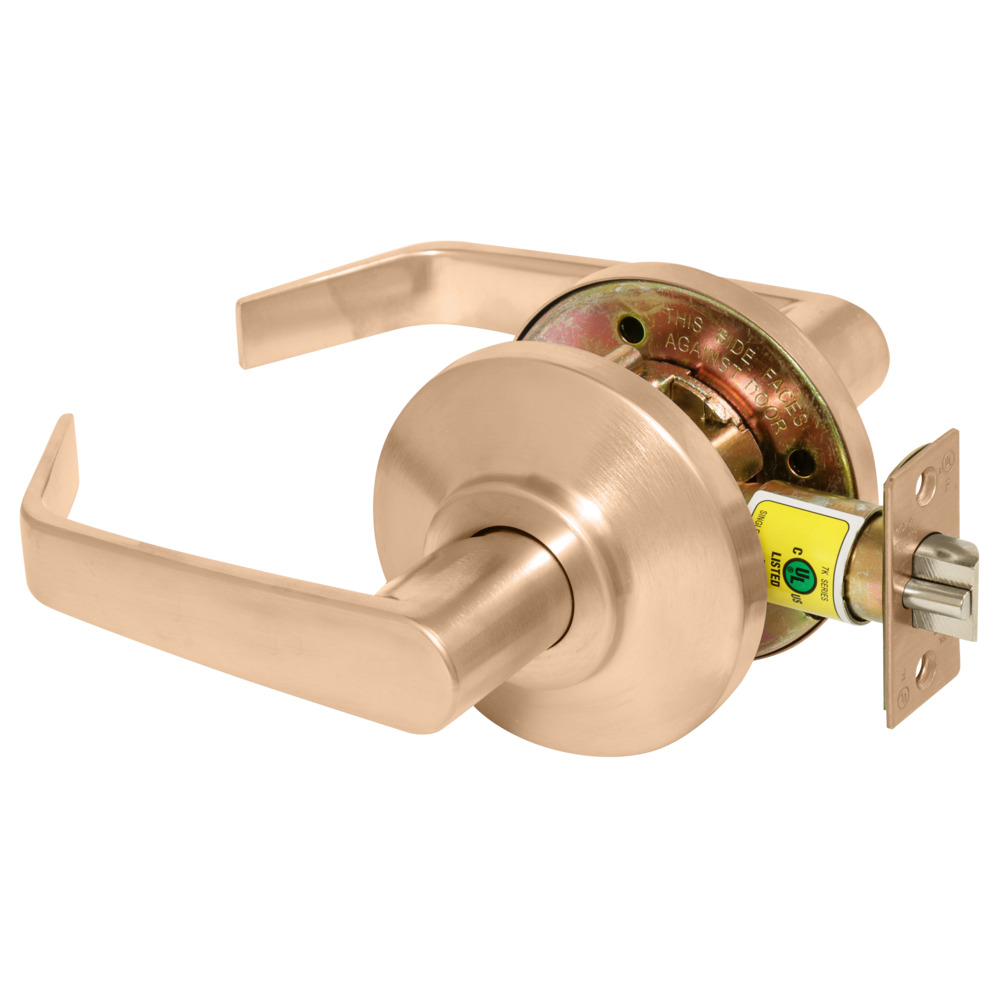

Best 7KC30N15DS3612 Grade 2 Passage Lock

BEST 7KC30N15DS3612 Grade 2 Passage Lock offers a reliable and stylish solution for commercial door applications. This Grade 2 cylindrical lock features a non-keyed design, making it ideal for passage areas where security is balanced with convenience. The satin bronze finish not only enhances its aesthetic appeal but also ensures durability, while the non-handed design allows for versatile installation on both left and right-hand doors. Certified by Underwriters Laboratories, the 7KC30N15DS3612 is suitable for use on 3-hour fire-rated, A label single swinging doors measuring up to 4' x 8'. Its quick rekeying capability with BEST interchangeable cores provides added flexibility, while the ADA compliance ensures accessibility for all users. The lock's robust construction includes a ½" throw deadlocking latch and a cylindrical chassis that fits standard door preparations. It accommodates door thicknesses ranging from 1 3/8" to 2", making it adaptable to various environments. Additionally, the lock includes a 5 1/4" long lever handle with a straight return design, ensuring ease of use. With a limited 3-year warranty and a variety of finishes available, the BEST 7KC30N15DS3612 Grade 2 Passage Lock is an excellent choice for those seeking quality and reliability in door hardware.

Grade 2 Passage Lock

Grade 2 Passage Cylindrical Lock, 15 Lever, Non-Keyed, Satin Bronze Finish, Non-handed

7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4' x 8' ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.

The 7KC Series has very versatile trims and has several finishes available too it your needs.

The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.

• Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
• Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
• Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
• Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
• Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
• Rose– D– 3 1/2" diameter mounting screws concealed.
• Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
• Door thickness– 1 3/8" to 2" .

NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
