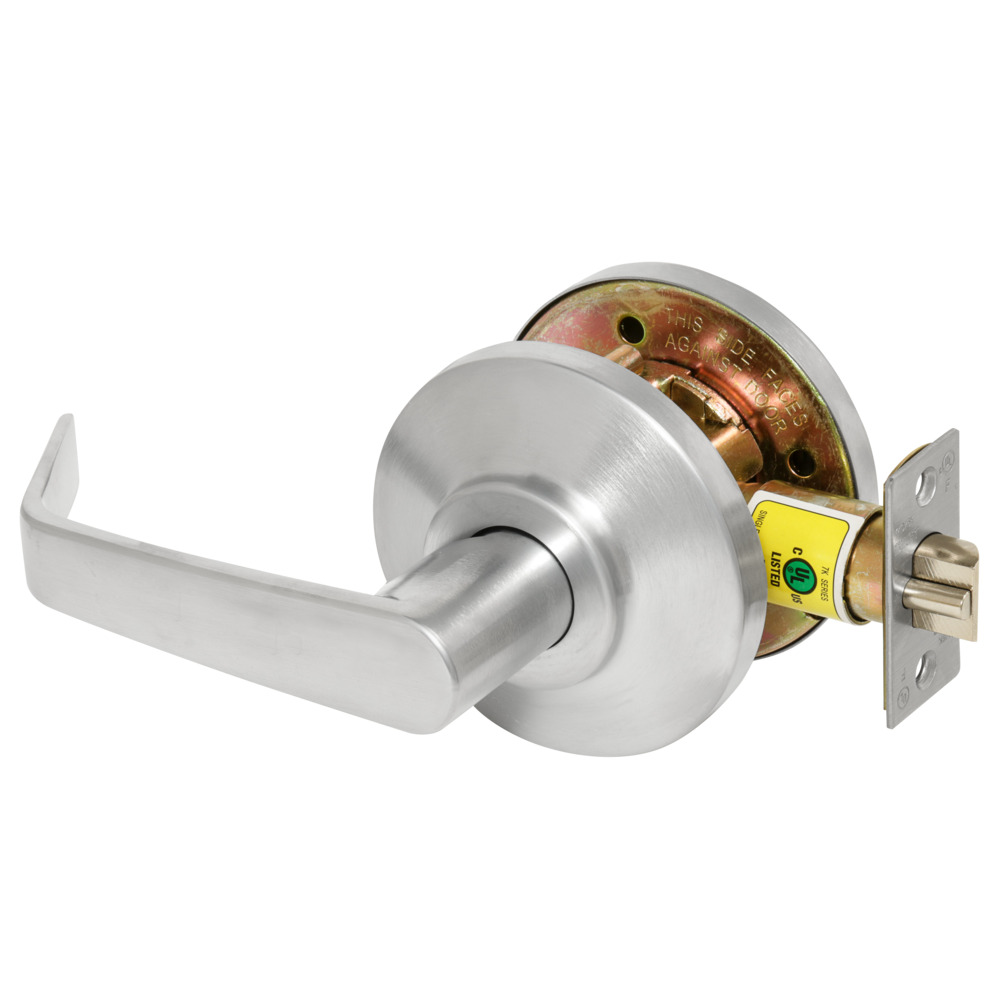

Best 7KC30Y15DS3626 Grade 2 Exit Lock

BEST 7KC30Y15DS3626 Grade 2 Exit Lock offers a reliable and secure solution for commercial applications, featuring a Grade 2 cylindrical design that is both durable and functional. This exit lock is equipped with a non-keyed, 15 lever handle, finished in an elegant satin chrome, ensuring a sleek appearance while also being non-handed for versatile installation. This lock is UL listed for use on 3-hour rated A label single swinging doors, accommodating door thicknesses from 1 3/8" to 2". The deadlocking latch features a 1/2" throw and is designed for easy installation with a standard 2 1/8" bore hole. The 7KC Series is recognized for its quick rekeying capability with BEST interchangeable cores, enhancing security options for building professionals. Additionally, the lock adheres to ADA compliance standards, making it accessible for all users. With a robust construction using brass, bronze, and zinc materials, the 7KC30Y15DS3626 is built to withstand the demands of high-traffic environments. Whether you’re upgrading existing hardware or installing new locks, this exit lock provides peace of mind and dependable performance, backed by a three-year limited warranty.

Grade 2 Exit Lock

Grade 2 Exit Cylindrical Lock, 15 Lever, Non-Keyed, Satin Chrome Finish, Non-handed

7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4' x 8' ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.

The 7KC Series has very versatile trims and has several finishes available too it your needs.

The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.

• Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
• Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
• Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
• Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
• Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
• Rose– D– 3 1/2" diameter mounting screws concealed.
• Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
• Door thickness– 1 3/8" to 2" .

NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
