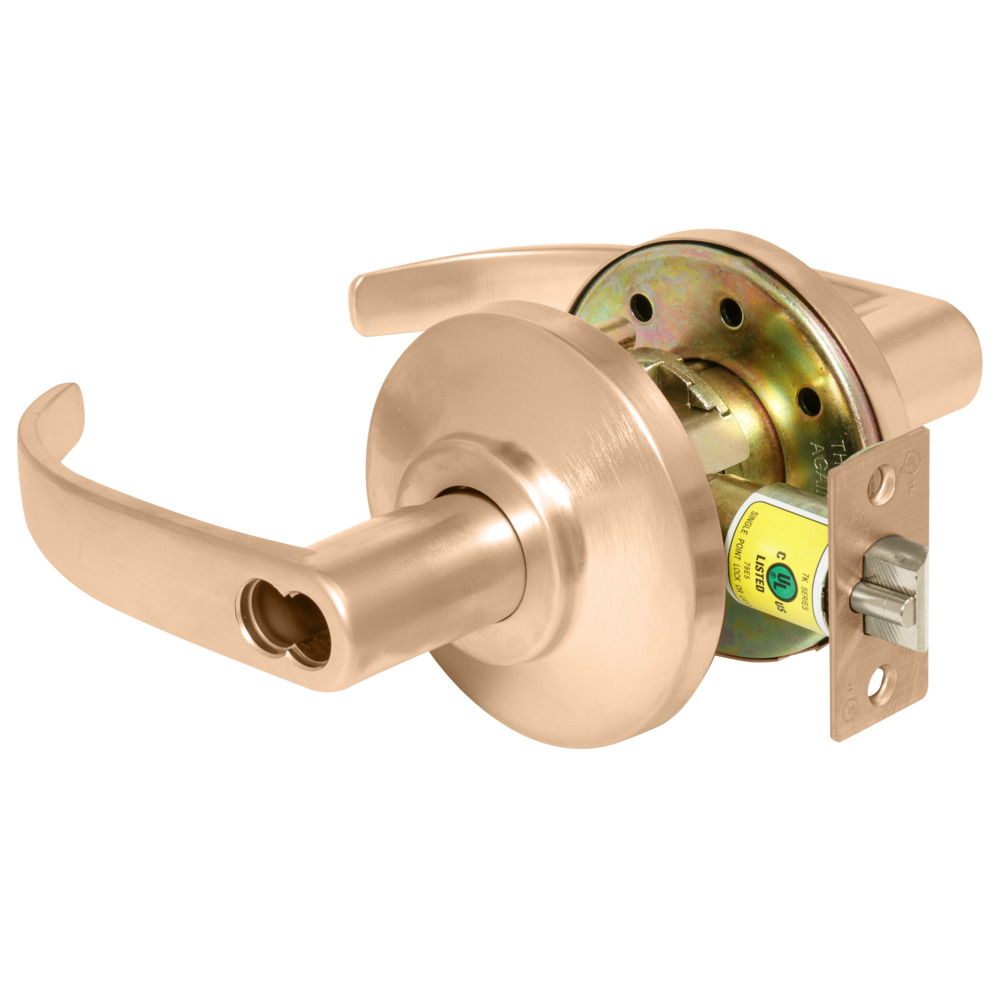

Best 7KC37AB14DSTK612 Grade 2 Entry Lock

BEST 7KC37AB14DSTK612 Grade 2 Entry Lock offers robust security and versatility for commercial applications. This Grade 2 cylindrical lock features a sleek satin bronze finish and is designed with a 14 lever style, providing both functionality and aesthetic appeal. Its non-handed construction ensures easy installation on various door orientations. Certified by Underwriters Laboratories for use on three-hour, A label single swinging doors, this lock meets ANSI A156.3, Grade 2 standards and is compliant with the California Administrative Code and Illinois Accessibility Standards. The 7KC series is particularly known for its quick rekeying capabilities, utilizing BEST interchangeable cores for efficient access management. With a robust construction featuring a 1/2" throw deadlocking latch and a durable zinc base, the lock is built to withstand daily wear and tear. It accommodates door thicknesses ranging from 1-3/8" to 2" and has a 2 1/8" bore for lock housing. Additionally, it includes a 3 1/2" concealed rose and a standard strike compatible with ANSI specifications. Whether for office buildings or commercial spaces, the BEST 7KC37AB14DSTK612 Grade 2 Entry Lock combines reliability and style, ensuring secure access for years to come.

Grade 2 Entry Lock

Grade 2 Entry Cylindrical Lock, 14 Lever, SFIC Less Core, Satin Bronze Finish, Non-handed

7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4' x 8' ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.

The 7KC Series has very versatile trims and has several finishes available too it your needs.

The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.

• Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
• Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
• Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
• Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
• Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
• Rose– D– 3 1/2" diameter mounting screws concealed.
• Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
• Door thickness– 1 3/8" to 2" .

NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.

Resources

• 7KC Sell Sheet
• 7KC Series Grade 2 Cylindrical Lever Locks Cut Sheet
• 7KC Series Service Manual
• Cylindrical Installation Instructions
• Cylindrical Locks - 7KC Series Catalog
• Installation Instructions for 72KC-75KC Cylindrical Locks
• Installation Instructions for 72KC-75KC Key-in-Knob Cylinders
• Installation Instructions for 7K Cylindrical Locks
• Installation Instructions for 7K Dummy Trims
• Installation Instructions for 7KC 1DT 9K 1DT 2DT Dummy Trim Assemblies
