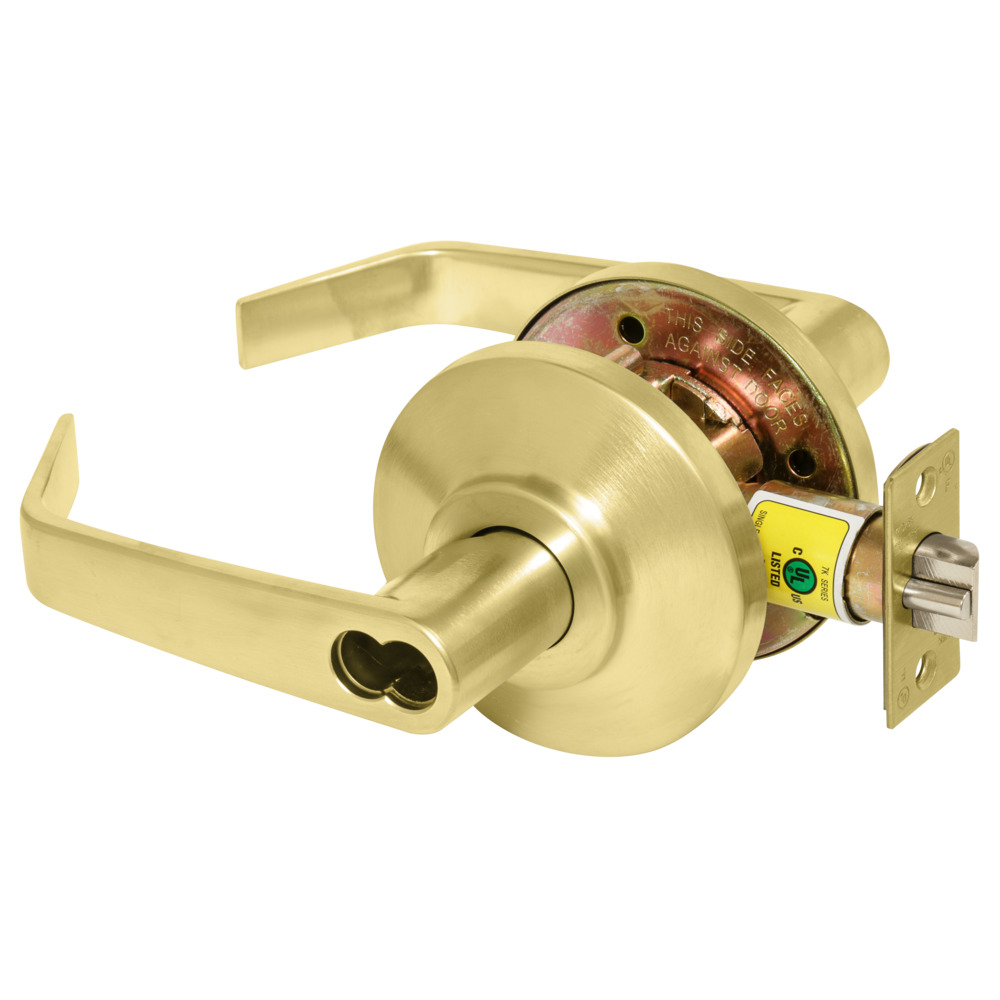

Best 7KC37R15DS3606 Grade 2 Classroom Lock

BEST 7KC37R15DS3606 Grade 2 Classroom Lock offers a robust and reliable locking solution tailored for educational and commercial environments. This Grade 2 cylindrical lock features a satin brass finish that provides both aesthetic appeal and durability. Designed with a non-handed configuration, it accommodates various door setups effortlessly. Certified by Underwriters Laboratories for use on 3-hour fire-rated doors, the 7KC series meets ANSI A156.3 standards and is California Administrative Code compliant. Its versatile trims and multiple finishes make it an ideal choice for diverse architectural styles. The lock's interchangeable core allows for quick rekeying, enhancing security management in high-traffic areas. Equipped with a 1/2" throw deadlocking latch, the lock fits a standard 2-1/8" bore hole, ensuring compatibility with common door preparations. The 5 1/4" lever handle is designed for ADA compliance, ensuring accessibility for all users. Constructed from high-quality materials, including brass and zinc dichromated steel, the 7KC37R15DS3606 balances strength and functionality. With a door thickness range of 1 3/8" to 2", this lock is designed to accommodate various door sizes while providing peace of mind in security. Ideal for classrooms, offices, and other commercial spaces, the BEST 7KC37R15DS3606 is a trusted choice for reliable access control.

Grade 2 Classroom Lock

Grade 2 Classroom Cylindrical Lock, 15 Lever, SFIC Less Core, Satin Brass Finish, Non-handed

7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4' x 8' ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard.

The 7KC Series has very versatile trims and has several finishes available too it your needs.

The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.

• Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
• Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
• Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
• Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
• Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
• Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
• Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
• Rose– D– 3 1/2" diameter mounting screws concealed.
• Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
• Door thickness– 1 3/8" to 2" .

NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.

Resources

• 7KC Sell Sheet
• 7KC Series Grade 2 Cylindrical Lever Locks Cut Sheet
• 7KC Series Service Manual
• Cylindrical Installation Instructions
• Cylindrical Locks - 7KC Series Catalog
• Installation Instructions for 72KC-75KC Cylindrical Locks
• Installation Instructions for 72KC-75KC Key-in-Knob Cylinders
• Installation Instructions for 7K Cylindrical Locks
• Installation Instructions for 7K Dummy Trims
• Installation Instructions for 7KC 1DT 9K 1DT 2DT Dummy Trim Assemblies
