BEST 8K37T4CSTK626 Grade 1 Dormitory Lock offers exceptional security and durability for commercial applications. This Grade 1 cylindrical lock is designed for dormitory settings, featuring a robust construction of steel or brass that surpasses typical locks made from weaker materials. Its satin chrome finish not only enhances its aesthetic appeal but also contributes to its long-lasting performance. Certified to ANSI A156.2 Series 4000 standards, the 8K Series is Underwriters Laboratories Listed for use on 3-hour rated, A label single swinging doors, ensuring compliance with stringent safety requirements. The non-handed design allows for easy installation on various door configurations, accommodating door thicknesses from 1-3/4" to 2-1/4". Key features include a tactile or knurled knob for accessibility, a breakaway feature that prevents over-torquing, and a unique no keeper hole on keyed knobs for added security. The long bearing length in the chassis ensures smooth operation and resistance to wear. Additionally, lead line options make this lock suitable for environments with radioactive doors, such as MRI and x-ray facilities. With a limited 3-year warranty and backed by a reputation for quality, the BEST 8K37T4CSTK626 is an excellent choice for those seeking reliable, heavy-duty locking solutions.

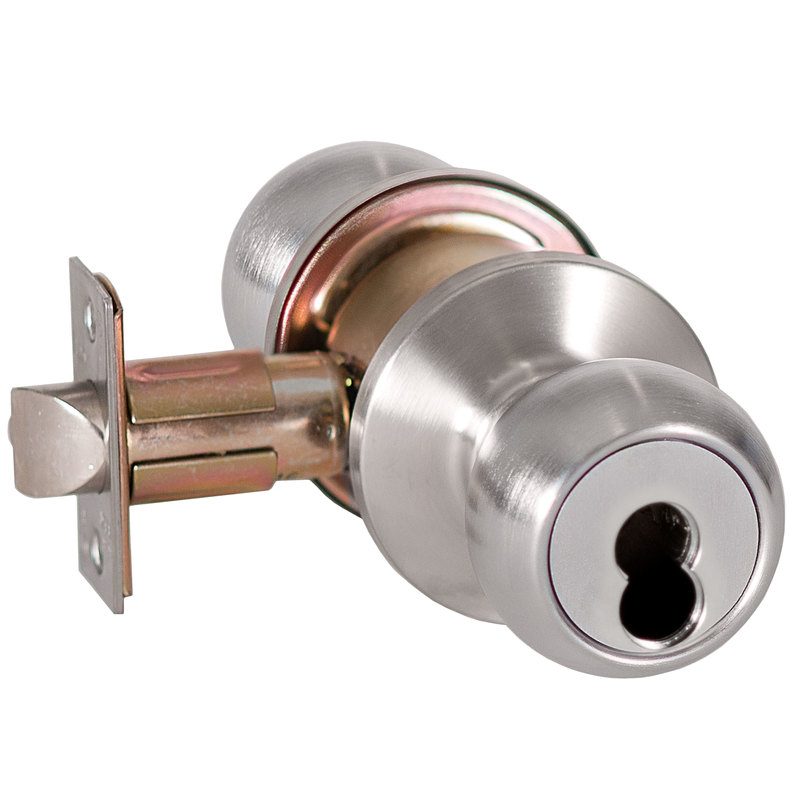

Grade 1 Dormitory Cylindrical Lock, 4 Knob, SFIC Less Core, Satin Chrome Finish, Non-handed
8K Cylindrical Lock Certification ANSI A156.2 Series 4000, Grade 1 as certified in Builder Hardware Manufacturers Association directory ascomplying with this standard. Underwriters Laboratories Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors. GYJT Builders Hardware-Single point Locks or Latches.
Grade 1 heavy-duty cylindrical lock.
Unlike other cylindrical knob sets that are made from weaker metals, the BEST 8K Series is constructed of steel or brass to ensure the overall strength and durability of the lock.
Attributes
Ansi: F90
Ansi Function: F90 - Dormitory
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 9-5/8"
Box Height Fraction: 3-1/2"
Box Width Fraction: 6-3/4"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2-1/4"
Dust Box: Plastic
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: T-Dormitory
Function Family: Dormitory
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Knob
Lever Knob Design Name: 4
Leverknob Design: 4 Knob
Leverknob Design Family: Flat Knob
Limited Warranty: 3 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Dormitory
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 3.5"
Pack Height 2: 10.5"
Pack Length: 9.63"
Pack Length 2: 15"
Pack Qty: 1
Pack Volume: 227.39 in³
Pack Volume 2: 1811.25 in³
Pack Width: 6.75"
Pack Width 2: 11.5"
Pins: 6 to 7
Product Height: 3.5"
Product Length: 9.63"
Product Width: 6.75"
Projection: 2-7/8"
Rose Escutcheon: Rose
Roseescutcheon Design: C Rose
Roseescutcheon Dimensions: 2-9/16"
Screws: Wood/Machine Screws
Series: 8K Series Grade 1 Cylindrical Knob Locks
Ship Weight: 3.5 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 8K3
Std Latch Type: Deadlatch
Std Strike Height: 2-3/4"
Std Strike Number: STK
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/8"
Strike Dimensions: 1-1/8" x 2-3/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 12
