Best 9K01DT15C626 Grade 1 Single Dummy TrimBEST 9K01DT15C626 Grade 1 Single Dummy Trim offers a robust solution for those seeking durability and security in a stylish package. This Grade 1 single dummy cylindrical lock features a non-keyed design with an elegant satin chrome finish, making it suitable for a variety of environments. Engineered to withstand over 4 million cycles, this lock surpasses ANSI standards for durability, ensuring reliable performance even under heavy use. The 9K’s low-maintenance design is one of its standout features, protecting critical components from wear and tear, which translates into lower long-term ownership costs. Its lever return springs minimize sagging, keeping the lever assembly in optimal condition without the need for frequent adjustments. Installation is a breeze with the pre-assembled hub design, allowing for a straightforward five-step process. Additionally, the lock's quick rekeying capability offers flexibility for customized master key systems. Designed for standard door thicknesses of 1 3/4" to 2 1/4", the BEST 9K is perfect for both new constructions and retrofits. With its combination of quality materials, exceptional craftsmanship, and aesthetic appeal, the BEST 9K01DT15C626 ensures lasting security and style for commercial applications.
Grade 1 Single Dummy Trim

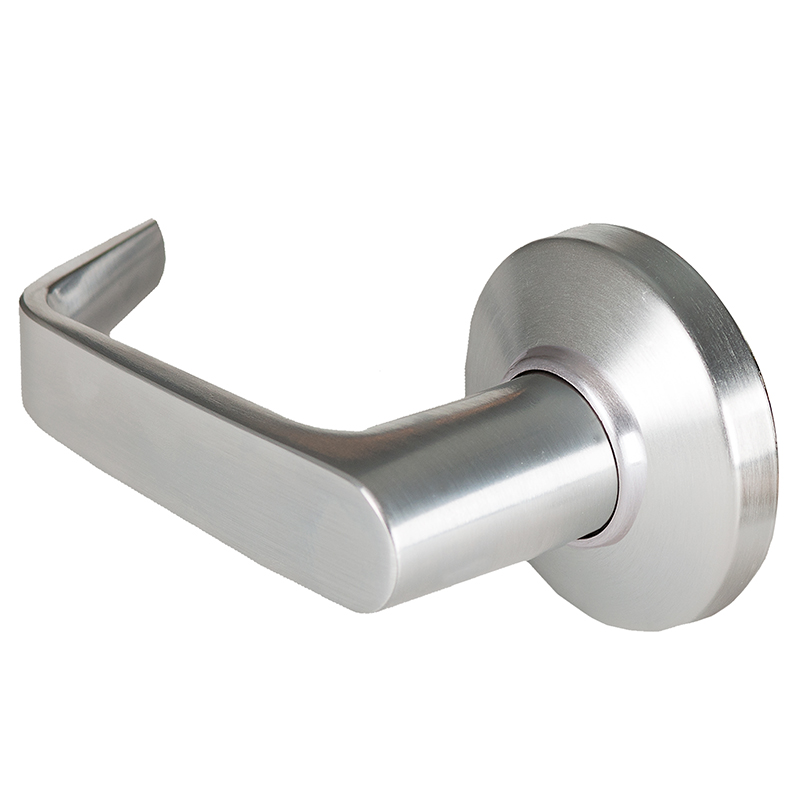

Grade 1 Single Dummy Cylindrical Lock, 15 Lever, Non-Keyed, Satin Chrome Finish, Non-handed
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall. With proven Grade 1 security, easy core interchangeability and a broad array of styles and finishes, the BEST 9K fits exactly where you need it.
The BEST 9K Series is ideal for retrofit and new construction alike.
BEST's 9K series cylindrical lock combines top-quality materials and exceptional craftsmanship into a tough, dependable, long-lasting security solution. The 9K is easy to install, durable, and secure. BEST's range of available finishes and styles ensures that the 9K delivers aesthetics to match a variety of applications.
Features:
- Durable. Tested to over 4 million cycles, which exceeds the ANSI standard for Grade 1 cylindrical locks and exceeds Grade 1 abusive locked lever torque.
- Easy to Maintain. Lever return springs provide resistance to lever sag, which ensures that the lever assembly will not need to be reset or replaced once installed. Lever return springs are also protected inside the die-cast hub to minimize any maintenance.
- Easy to Install. Pre-assembled hub design greatly reduces the complexity and time required for installation. Installation can be completed in 5 steps.
- Quick Rekeying. BEST interchangeable core allows for customized masterkeying and quick keying changes.
Specifications:
- Latch: solid stainless steel 9/16" throw; front 2 1/4" and 1 1/8" beveled
- Lever handles: plated zinc alloy
- Trim: brass or bronze
- Strike: ANSI 2 3/4" standard; ANSI S3 4 7/8", ANSI S3 7/8" flat, and 7/8" flat strike (STK) available
- Chassis: zinc alloy and corrosion-treated steel; 2 1/16” diameter
- Door thickness: available for 1 3/4" or 2 1/4" doors; spacers available for 1 3/8" door
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard; 3 2/4" and 5" available
Keying:
- 6-pin non-IC brass cylinder
- 6- or 7-pin SFIC option available
- Keyway options: LFIC: SCHRC-Schlage, Non-IC: COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale
Attributes
Baa Qualified: Yes
Base Material: Brass, Bronze
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2-1/4"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 1DT-Single Dummy Trim
Function Family: Dummy
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Manufacturer Function: Single Dummy
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Product Height: 4"
Product Length: 8.13"
Product Width: 6.63"
Projection: 2-3/4"
Rose Escutcheon: Rose
Roseescutcheon Design: C Rose
Roseescutcheon Dimensions: 3"
Screws: Wood/Machine Screws
Series: 9K Series Grade 1 Cylindrical Lever Locks
Ship Weight: 4.3 lbs.
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
