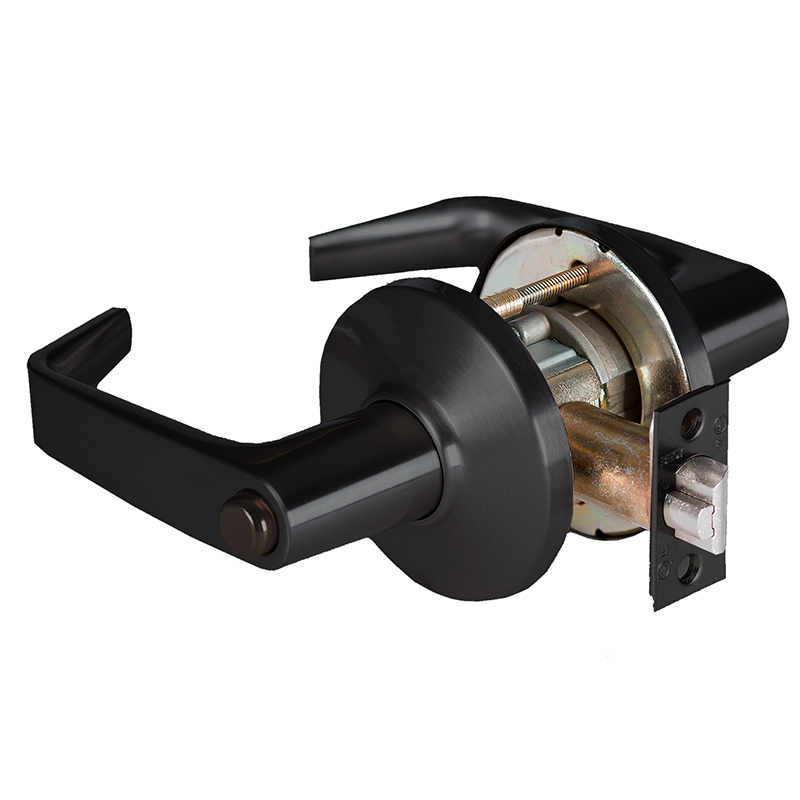

BEST 9K30L15DS3622 Grade 1 Privacy Lock offers a robust and dependable solution for securing private spaces in commercial settings. This Grade 1 cylindrical lock features a non-keyed design with a sleek matte black finish, making it both functional and visually appealing. The 15 lever design with a D rose escutcheon provides a modern touch while ensuring comfort and ease of use. Built to endure, the 9K is tested to over 4 million cycles, significantly surpassing ANSI standards for durability. Its low-maintenance design includes lever return springs that prevent sagging, ensuring longevity without the need for frequent adjustments. Installation is a breeze with a pre-assembled hub that simplifies the process into just five steps. Equipped with a solid stainless steel latch that boasts a 9/16" throw, this lock is compatible with doors ranging from 1 3/4" to 2 1/4" thick. The ANSI 4-7/8" strike complements its robust structure, while the BEST interchangeable core allows for easy rekeying and masterkeying options. The BEST 9K30L15DS3622 not only meets high security standards but also promises aesthetic versatility, making it an ideal choice for both retrofit and new construction projects. With a 10-year warranty, you can trust in its performance and reliability for years to come.
Grade 1 Privacy Cylindrical Lock, 15 Lever, D Rose, Non-Keyed, Matte Black Finish, 4-7/8" ANSI Strike, Non-handed
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall. With proven Grade 1 security, easy core interchangeability and a broad array of styles and finishes, the BEST 9K fits exactly where you need it.
The BEST 9K Series is ideal for retrofit and new construction alike.
BEST's 9K series cylindrical lock combines top-quality materials and exceptional craftsmanship into a tough, dependable, long-lasting security solution. The 9K is easy to install, durable, and secure. BEST's range of available finishes and styles ensures that the 9K delivers aesthetics to match a variety of applications.
Attributes
Ansi: F76
Ansi Function: F76 - Privacy
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2-1/4"
Finish: 622/US19
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: L-Privacy
Function Family: Privacy
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Privacy
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Product Height: 4"
Product Length: 8.13"
Product Width: 6.63"
Projection: 2-3/4"
Rose Escutcheon: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 9K Series Grade 1 Cylindrical Lever Locks
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 9K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
