BEST 9K30N15DS3622 Grade 1 Passage Lock offers a robust solution for both commercial and residential applications. This Grade 1 passage cylindrical lock features a non-keyed design with a stylish D Rose lever handle in a sleek matte black finish. Crafted for durability, the lock is tested to exceed 4 million cycles, ensuring longevity and reliable performance. Designed for easy installation, the pre-assembled hub simplifies the process to just five steps. The lever return springs are housed within a die-cast hub, minimizing maintenance and preventing sag, which is common with everyday use. This lock is suitable for doors with thicknesses ranging from 1-3/4" to 2-1/4", with spacers available for thinner doors. Additional benefits include quick rekeying with BEST's interchangeable core, allowing for customized masterkeying options. The solid stainless steel latch boasts a 9/16" throw, complemented by a standard ANSI strike for seamless integration into existing door preparations. With a 10-year limited warranty and UL listing, the BEST 9K30N15DS3622 provides a high level of security and peace of mind. Elevate your entryway with a dependable locking solution that combines functionality and aesthetic appeal.

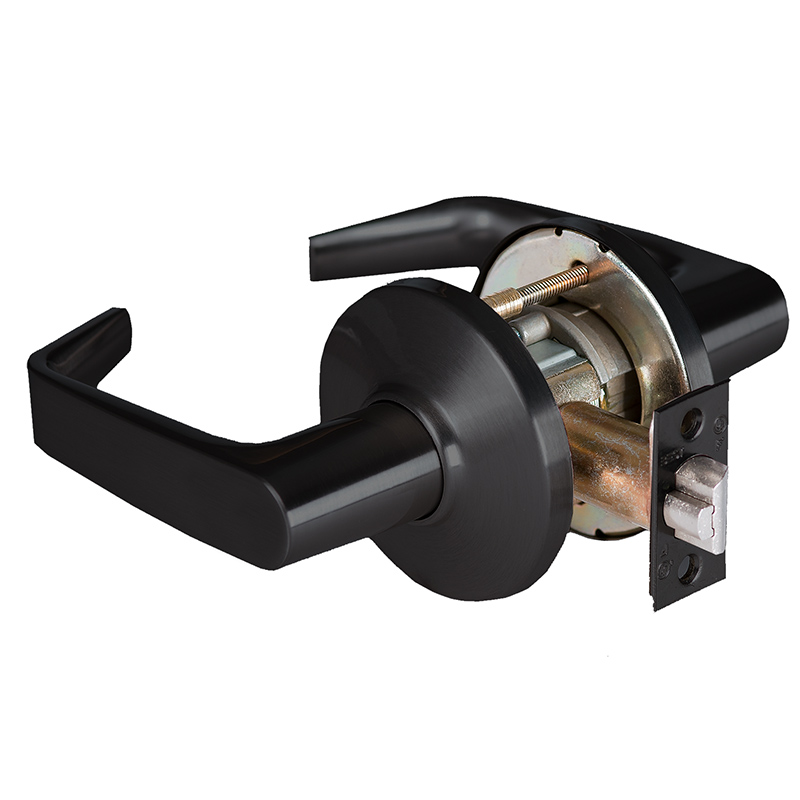

Grade 1 Passage Cylindrical Lock, 15 Lever, D Rose, Non-Keyed, Matte Black Finish, 4-7/8" ANSI Strike, Non-handed
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall. With proven Grade 1 security, easy core interchangeability and a broad array of styles and finishes, the BEST 9K fits exactly where you need it.
The BEST 9K Series is ideal for retrofit and new construction alike.
BEST's 9K series cylindrical lock combines top-quality materials and exceptional craftsmanship into a tough, dependable, long-lasting security solution. The 9K is easy to install, durable, and secure. BEST's range of available finishes and styles ensures that the 9K delivers aesthetics to match a variety of applications.
Attributes
Manufacturer surcharge: $ 0.0
Ansi: F75
Ansi Function: F75 - Passage
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Cylinders Present: Non-Keyed
Door Thickness: 1-3/4" to 2-1/4"
Finish: 622/US19
Finish Family: Black
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: N-Passage
Function Family: Passage
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: 15
Leverknob Design: 15 Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Passage
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Product Height: 4"
Product Length: 8.13"
Product Width: 6.63"
Projection: 2-3/4"
Rose Escutcheon: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 9K Series Grade 1 Cylindrical Lever Locks
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 9K3
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8"
Std Strike Number: S3
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4"
Strike Dimensions: 1-1/4" x 4-7/8"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
