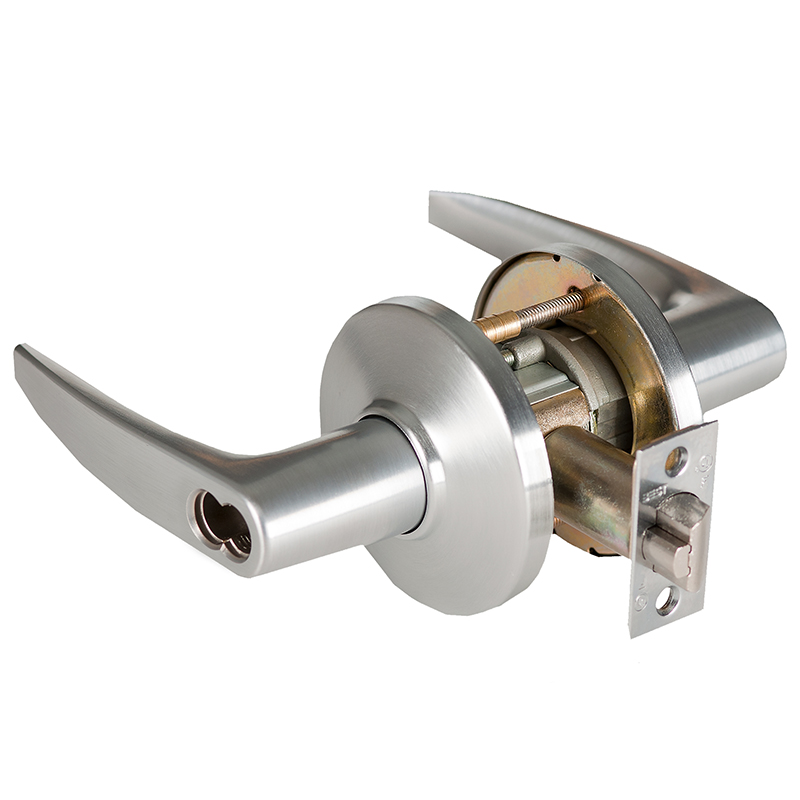

BEST 9K37R16DSTK626 Grade 1 Classroom Lock offers exceptional durability and security, making it an ideal choice for educational and commercial settings. This Grade 1 cylindrical lock features a robust 16 Lever design, a D Rose escutcheon, and a satin chrome finish that enhances both functionality and aesthetics. With a solid stainless steel latch boasting a 9/16" throw, this lock is designed for high traffic areas, tested to withstand over 4 million cycles, far exceeding ANSI standards. The non-handed configuration allows for versatile installation on doors ranging from 1-3/4" to 2-1/4" thick, making it suitable for retrofit and new constructions alike. Installation is simplified with a pre-assembled hub design, allowing completion in just five steps. Maintenance is minimal, thanks to lever return springs that prevent sagging and protect the mechanism within a die-cast hub. For added convenience, the BEST 9K includes an interchangeable core for quick rekeying, accommodating various keyway options such as Schlage and Medeco. With its robust construction, user-friendly features, and stylish design, the BEST 9K37R16DSTK626 is the perfect solution for those seeking reliable security without compromising on style.
Grade 1 Classroom Cylindrical Lock, 16 Lever, D Rose, SFIC Less Core, Satin Chrome Finish, 2-3/4" ANSI Strike, Non-handed
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall. With proven Grade 1 security, easy core interchangeability and a broad array of styles and finishes, the BEST 9K fits exactly where you need it.
The BEST 9K Series is ideal for retrofit and new construction alike.
BEST's 9K series cylindrical lock combines top-quality materials and exceptional craftsmanship into a tough, dependable, long-lasting security solution. The 9K is easy to install, durable, and secure. BEST's range of available finishes and styles ensures that the 9K delivers aesthetics to match a variety of applications.
Attributes
Ansi: F84
Ansi Function: F84 - Classroom
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 9/16"
Bore Hole Diameter: 2-1/8"
Box Depth Fraction: 8-1/8"
Box Height Fraction: 4"
Box Width Fraction: 6-5/8"
Burglar Rated: No
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4" to 2-1/4"
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: R-Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1"
Lever Knob: Lever
Lever Knob Design Name: 16
Leverknob Design: 16 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 10 Year Warranty
Lock Face Size: 1-1/8" x 2-1/4"
Manufacturer Function: Classroom
Maximum Door Thickness: 2-1/4"
Minimum Door Thickness: 1-3/4"
Origin: USA
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 6 to 7
Product Height: 4"
Product Length: 8.13"
Product Width: 6.63"
Projection: 2-3/4"
Rose Escutcheon: Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2"
Screws: Wood/Machine Screws
Series: 9K Series Grade 1 Cylindrical Lever Locks
Ship Weight: 4.3 lbs.
Std Latch Backset Dim: 2-3/4"
Std Latch Number: 9K3
Std Latch Type: Deadlatch
Std Strike Height: 2-3/4"
Std Strike Number: STK
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/8"
Strike Dimensions: 1-1/8" x 2-3/4"
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
