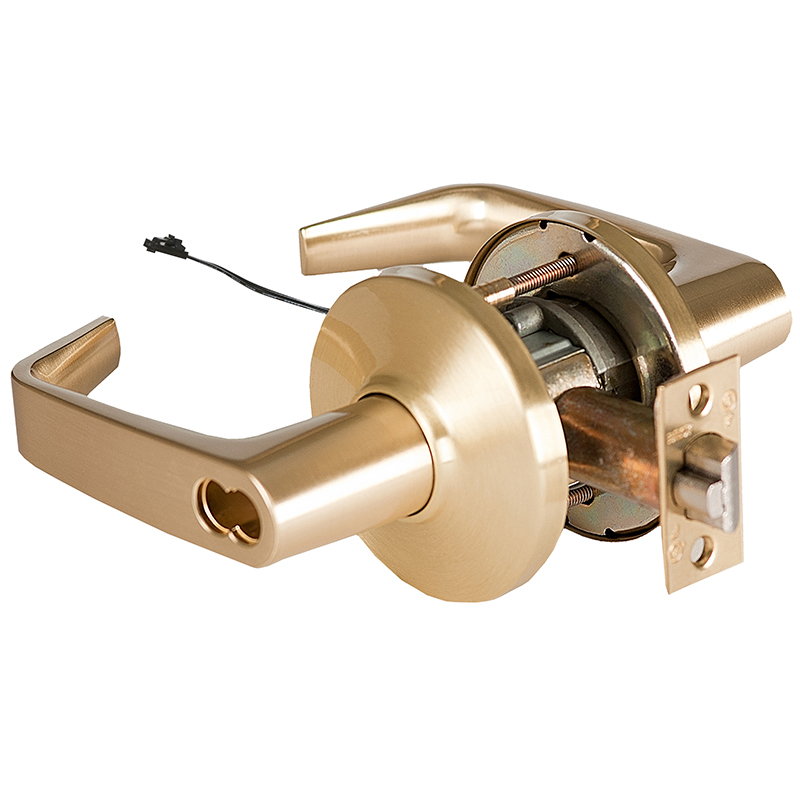

Best 9KW37DEL15DS3606RQE Electrified Lever LockBEST 9KW37DEL15DS3606RQE Electrified Lever Lock combines robust security with modern access solutions. This Grade 1 electric cylindrical lock is designed for durability, featuring a 2-3/4" backset and a fail-safe operation powered by 24VDC. The satin brass finish not only provides an elegant look but also ensures long-lasting performance in high-traffic environments. Certified by Underwriter's Laboratories, this lock is suitable for use on 3-hour, A label single swinging doors, meeting ANSI A156.2, Series 4000 Grade 1 standards. Its heavy-duty construction, including brass and bronze components, guarantees reliable functionality even under continuous use. The lock also offers the flexibility of integrating with online access control systems, making it ideal for commercial applications. With a 9/16" latchbolt and a chassis designed to fit a 2 1/8" hole in the door, installation is straightforward. The lock accommodates door thicknesses ranging from 1 3/4" to 2 1/4", enhancing its versatility. Additionally, the 9KW series is Miami-Dade County product control approved, ensuring compliance in areas with strict building codes. Choose the BEST 9KW37DEL15DS3606RQE for a secure, high-performance locking solution that meets today's access control needs while maintaining exceptional reliability.
Electrified Lever Lock
Grade 1 Electric Cylindrical Lock, Electronically Locked, 2-3/4" Backset, Fail Safe, 24VDC, 15D Design, Request to Exit, Satin Brass
UL Listed: Listed by Underwriter's Laboratories for use on 3 Hr, A label single swinging doors (4'x10'). GYJT Builders Hardware-single point locks or latches. American National Standard: ANSI A156.2, Series 4000 Grade 1 (formerly FF-H-106C Series 161.)The 9KW series cylindrical lock has received a notice of acceptance from Miami-Dade County and is considered Miami-Dade County product control approved. "WS" option must be ordered for the lock to include a "Miami-Dade County Product Control Approved" label for inspection purposes.
Electromechanical locks built on the heavy-duty performance of the 9K series.
The 9KW Series' electrified option allows integration to online access systems while preserving durability and reliability. These locks work in heavy-duty, high traffic applications where you need a lock that performs over time. BEST's electromechanical locks exceed ANSI grade 1 standards and incorporate design standards that ensure reliable functionality even with heavy use.
- Trim Materials: Brass or bronze
- Internal Components: brass, bronze, zinc alloy, or corrosion-treated steel
- Door Thickness: 1 3/4” – 2 1/4”
- Strike: Brass, bronze, or stainless steel; standard 2 3/4” x 1 1/8” x 3/32” or ANSI 4 7/8” x 1 1/4” x 3/32”
- Backset: 2 3/4” standard, 3 3/4” and 5” available
- Latchbolt: 9/16” (3/4” throw optional)
- Chassis: 2 1/6” diameter, fits 2 1/8” hole in door
Attributes
Amp Draw: 0.18
Baa Qualified: Yes
Base Material: Brass
Bolt Projection: 9/16"
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-3/4" - 2-1/4"
Finish: 606/US4
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: DEL-Electronically Locked
Grade: Grade 1
Handing: Not Handed
Latch Backset Dim: 2-3/4"
Leverknob Design: 15 Lever
Limited Warranty: 3 Years
Lock Face Size: 2-1/4" X 1-1/8"
Operating Voltage: 24VDC
Origin: USA
Pack Height: 4"
Pack Height 2: 8.75"
Pack Length: 8.13"
Pack Length 2: 20.5"
Pack Qty: 1
Pack Volume: 215.31 in³
Pack Volume 2: 2242.19 in³
Pack Width: 6.63"
Pack Width 2: 12.5"
Pins: 7
Power: Hard Wired
Roseescutcheon Design: D - Rose
Screws: Combination
Series: 9KW Series Electromechanical Lever Locks
Ship Weight: 4.3 lbs.
Std Latch Number: 8KL3DL
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8"
Std Strike Number: 8KS3
Std Strike Type: ASA
Std Strike Width: 1-1/4"
Subtype: Electric Cylindrical Lock
Switch Type: RX
Type: Electric Locks
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 9
