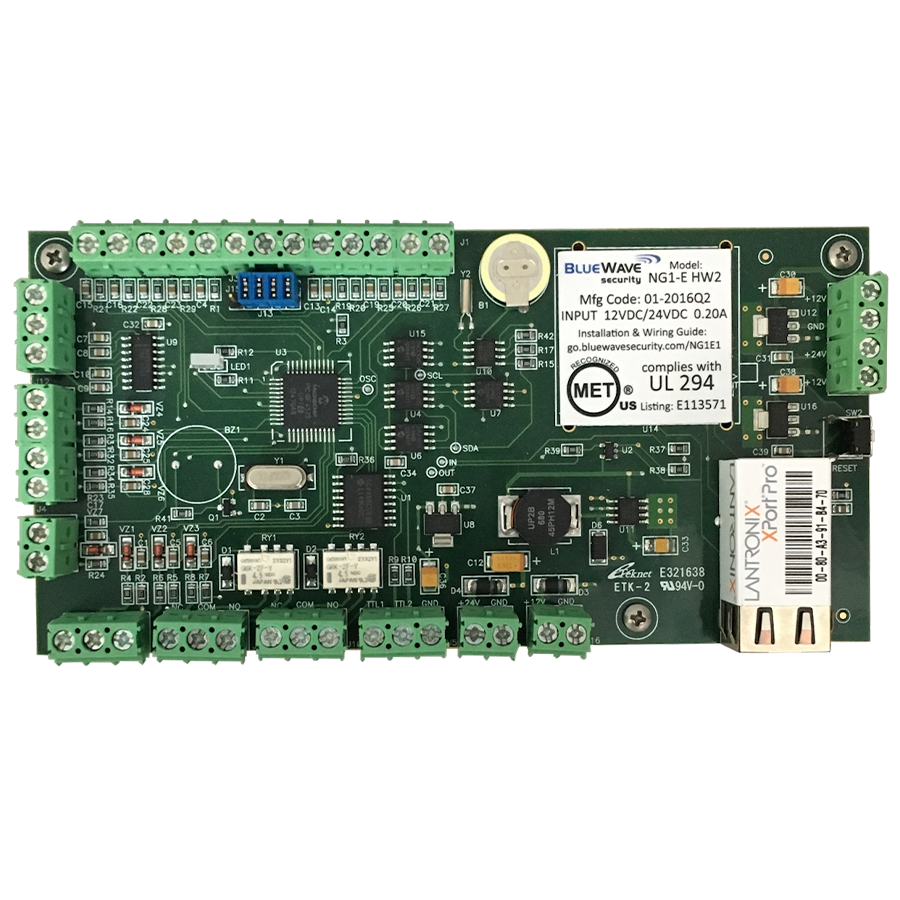

Bluewave NG1-E-BO Netgen 1 Door Ethernet Controller Board

Bluewave Security NG1-E-BO Netgen 1 Door Ethernet Controller Board offers an advanced solution for managing access control systems seamlessly. This intelligent controller communicates in real-time with BlueView software over a wired Ethernet network, ensuring efficient door operation. In case of temporary network disruptions, the NG1-E-BO maintains functionality by storing user permissions and up to 2,000 audit events directly at the door. Designed to support industry-standard 26-Bit Wiegand card formats, this controller allows integration with existing systems, making it a cost-effective upgrade for those utilizing legacy Wiegand readers. It operates on 12 or 24 volts, accommodating both traditional locking devices and modern security technology. Key features include UL 294 rating, two Wiegand reader inputs for badge in/out functionality, and two Form C output relay points capable of sourcing 3A at 30Vdc. The controller is built to withstand various environmental conditions with an operating temperature range of 5°F to 158°F and a humidity tolerance of 10-90% RH (non-condensing). Weighing just 2.12 oz. and measuring 6.25" x 3" x 1.25", the NG1-E-BO is compact yet powerful. Ensure you acquire the BlueView software license for optimal performance with this advanced access control solution.

Netgen 1 Door Ethernet Controller Board

The NetGen™ IP Door Controller is the component of a BlueWave Security access control system that manages the operation of your door(s) by communicating with BlueView software in real-time over a wired Ethernet network. The NG1-E-BO is a "smart" controller that stores permissions and up to 2,000 audit events at the door so that your door operations will be unaffected in the occasion of a temporary loss of network connectivity. The NG1-E-BO supports industry standard 26-Bit Wiegand card formats and 12 or 24 volt locking devices so customers with legacy systems can leverage their investment in their current Wiegand readers and door electronics by using NetGen™ controllers and BlueView software to upgrade their system.

Features:

• UL 294 Rated.
• On-Board Brown out Reset (BOR).
• 1M EEPROM On-Board SRAM (256x8).
• Two (2) Wiegand Reader Inputs for Badge In/Badge Out Function.
• Two (2) Form C Output Relay Point Capable of Sourcing 3A @ 30Vdc.
• Three (3), 2 State Inputs (Door Sensor, REX, AUX).
• Two (2) TTL Drive Lines External Interface (5V High).
• LED Status Indicator.
• Supports Industry Standard 26-Bit Wiegand Card Format.
• Support 12 & 24 Volt Locking Devices.

Specifications:

• Primary Voltage Input: + 12 or 24V (DC).
• Primary Voltage Output: + 12 or 24V (DC) Depending on Input Voltage Supplied.
• Maximum Voltage Output: 1 Amp.
• Operating Voltage: .250mA @ 12Vdc.
• Operating Temperature: 5°F - 158°F.
• Operating Humidity: 10-90% RH (non-condensing).
• Weight: 2.12 oz.
• Dimensions (LxWxD): 6.25" x 3" x 1.25".
• Network Cable: Cat5, Cat5e or Cat6.
• Note: BlueView Software license must be purchased/available to work with NG1-E-BO.
