Bluewave NG1-E-DK-POE 1 Door Kit Netgen Ethernet Controller

Bluewave Security NG1-E-DK-POE 1 Door Kit Netgen Ethernet Controller offers a robust solution for managing and securing your access points. This advanced IP Door Controller seamlessly communicates with the BlueView software over a wired Ethernet network, enabling real-time monitoring and control. With its built-in firmware, the NG1-E-BO ensures uninterrupted door operation, even during temporary network outages, by storing permissions and up to 2,000 audit events locally. Key features of the NG1-E-DK-POE include UL 294 certification, support for the industry-standard 26-bit Wiegand card format, and a user-friendly interface with LED status indicators. It is equipped with two Wiegand reader inputs, two Form C output relay points capable of sourcing 3A at 30V DC, and three two-state inputs for door sensors and auxiliary functions. The kit includes essential components such as a PoE injector, PoE splitter, cam lock, and an enclosure, making installation straightforward and efficient. Operating effectively in a temperature range of 5°F to 158°F and a humidity level of 10-90% RH (non-condensing), the NG1-E-DK-POE is designed for durability and reliability. Elevate your security with this powerful and adaptable access control solution from Bluewave Security.

1 Door Kit Netgen Ethernet Controller

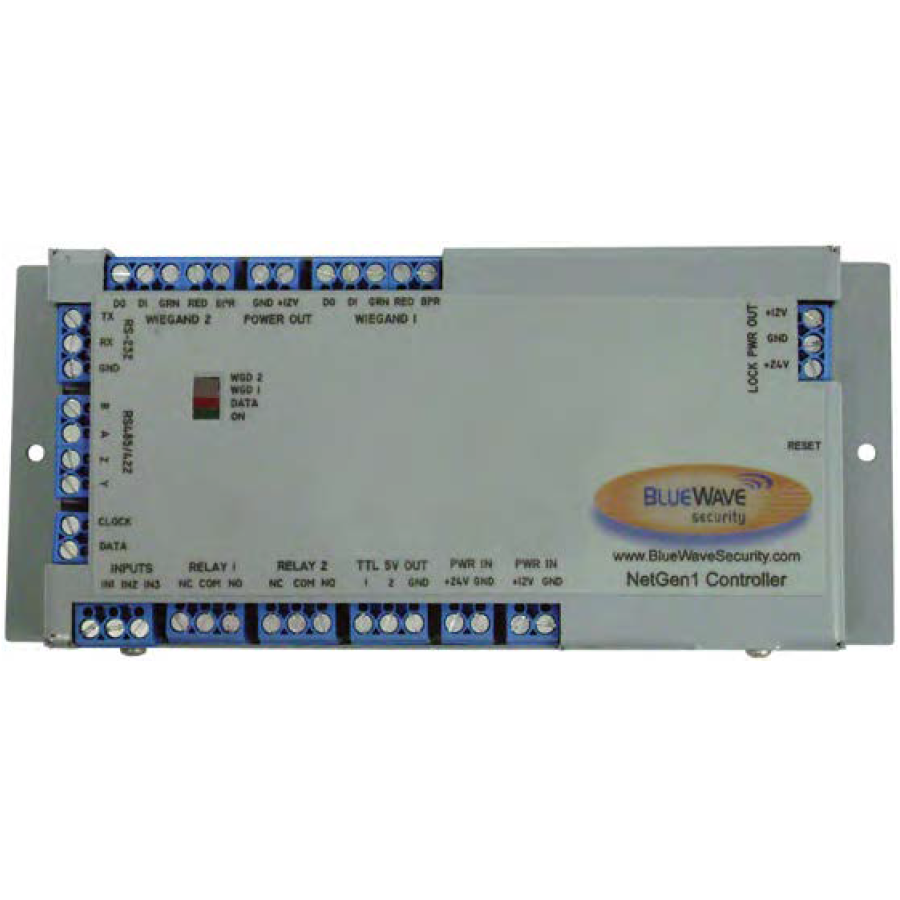

The NetGen™ IP Door Controller is the component of a BlueWave Security access control system that manages the operation of your door(s) by communicating with BlueView software in real-time over a wired Ethernet network. It has embedded device firmware that allows a user to access, monitor, manage and control the NG1-E-BO hardware, which in turn controls the doors, access readers, inputs and other devices. The NG1-E-BO is a "smart" controller that stores permissions and up to 2,000 audit events at the door so that your door operations will be unaffected in the occasion of a temporary loss of network connectivity.

Features:

• UL 294 Rated.
• Supports Industry Standard 26-Bit Wiegand Card Format.
• On-Board Brown out Reset (BOR) and Internal Watchdog Timer.
• 1M EEPROM On-Board SRAM (256x8).
• Two (2) Wiegand Reader Inputs.
• Two (2) Form C Output Relay Point Capable of Sourcing 3A @ 30Vdc.
• Three (3), 2 State Inputs (Door Sensor, REX, AUX).
• Two (2) TTL Drive Lines External Interface (5V High).
• LED Status Indicator.

Specifications:

• Door Kit Components:
• NG1-E-DK-BO: (1) - NG1-E-BO; (1) - Enclosure; (1) - Cam Lock.
• NG1-E-DK-PS: (1) - NG1-E-BO; (1) - 2.5 Amp Power Supply; (1) - Transformer 16VAC-40V (requires 110 outlet); (1) - 12V, 4 Amp Hour Battery; (1) - Enclosure; (1) - Cam Lock.
• NG1-E-DK-POE: (1) - NG1-E-BO; (1) - PoE Injector; (1) - PoE Splitter; (1) - Enclosure; (1) - Cam Lock.

NG1-E-BO Specifications:
