Bluewave NG1-E-DK-PS 1 Door Kit Ethernet w/Power Supply

Bluewave Security NG1-E-DK-PS 1 Door Kit Ethernet w/Power Supply integrates cutting-edge technology into your access control system, ensuring effective management of your doors. This kit includes the NetGen™ IP Door Controller, which communicates seamlessly with BlueView software over a wired Ethernet network, allowing real-time access and monitoring. A standout feature is its ability to store permissions and up to 2,000 audit events at the door, guaranteeing uninterrupted operation even during temporary network outages. Designed with reliability in mind, the NG1-E-DK-PS is UL 294 rated and supports the industry-standard 26-Bit Wiegand Card Format. It features two Wiegand reader inputs and two Form C output relay points capable of sourcing 3A at 30Vdc. The device houses an on-board brown-out reset and an internal watchdog timer for enhanced stability. The kit includes essential components such as a 2.5 Amp power supply, a 12V, 4 Amp-hour battery, and an enclosure with a cam lock, ensuring comprehensive security and ease of installation. Operating efficiently in temperatures ranging from 5°F to 158°F and maintaining performance at 10-90% humidity, this door kit is ideal for a variety of environments. Elevate your security with Bluewave Security’s NG1-E-DK-PS.

1 Door Kit Ethernet w/Power Supply

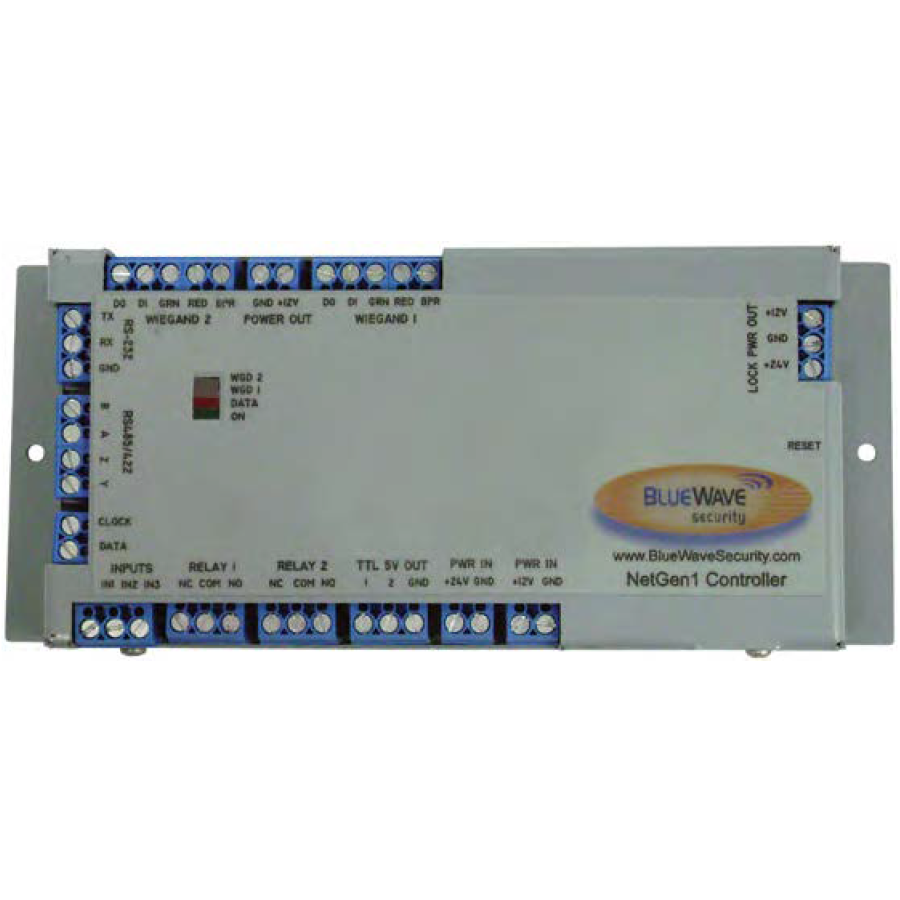

The NetGen™ IP Door Controller is the component of a BlueWave Security access control system that manages the operation of your door(s) by communicating with BlueView software in real-time over a wired Ethernet network. It has embedded device firmware that allows a user to access, monitor, manage and control the NG1-E-BO hardware, which in turn controls the doors, access readers, inputs and other devices. The NG1-E-BO is a "smart" controller that stores permissions and up to 2,000 audit events at the door so that your door operations will be unaffected in the occasion of a temporary loss of network connectivity.

Features:

• UL 294 Rated.
• Supports Industry Standard 26-Bit Wiegand Card Format.
• On-Board Brown out Reset (BOR) and Internal Watchdog Timer.
• 1M EEPROM On-Board SRAM (256x8).
• Two (2) Wiegand Reader Inputs.
• Two (2) Form C Output Relay Point Capable of Sourcing 3A @ 30Vdc.
• Three (3), 2 State Inputs (Door Sensor, REX, AUX).
• Two (2) TTL Drive Lines External Interface (5V High).
• LED Status Indicator.

Specifications:

• Door Kit Components:
• NG1-E-DK-BO: (1) - NG1-E-BO; (1) - Enclosure; (1) - Cam Lock.
• NG1-E-DK-PS: (1) - NG1-E-BO; (1) - 2.5 Amp Power Supply; (1) - Transformer 16VAC-40V (requires 110 outlet); (1) - 12V, 4 Amp Hour Battery; (1) - Enclosure; (1) - Cam Lock.
• NG1-E-DK-POE: (1) - NG1-E-BO; (1) - PoE Injector; (1) - PoE Splitter; (1) - Enclosure; (1) - Cam Lock.

NG1-E-BO Specifications:
