Bosch DS9370 Tritech Ceiling Mount

Bosch Security DS9370 Ceiling Mount TriTech offers a state-of-the-art solution for comprehensive motion detection in commercial spaces. This innovative panoramic ceiling mount detector features both PIR and microwave sensing technologies, ensuring a 360-degree coverage area with a diameter of 21 meters (70 feet) at mounting heights ranging from 2.4 meters to 7.6 meters (8 to 25 feet). The DS9370 utilizes First Step Processing (FSP), which allows for an immediate response to human movement while significantly reducing false alarms from other environmental sources. Its high-efficiency LED and light-pipe system provide clear walk test indications visible from any angle and at all mounting heights, facilitating easy installation and maintenance. Additionally, the alarm memory feature retains the alarm LED state, enhancing response efficiency during critical situations. For further convenience, the remote LED walk-test control allows users to enable or disable the LED without directly accessing the detector, streamlining operational management. With a low operating voltage of 9 to 15 VDC and a standby current of just 19 mA, the Bosch DS9370 is both energy-efficient and effective, making it an ideal choice for any commercial installation requiring reliable motion detection.

Ceiling Mount Tritech

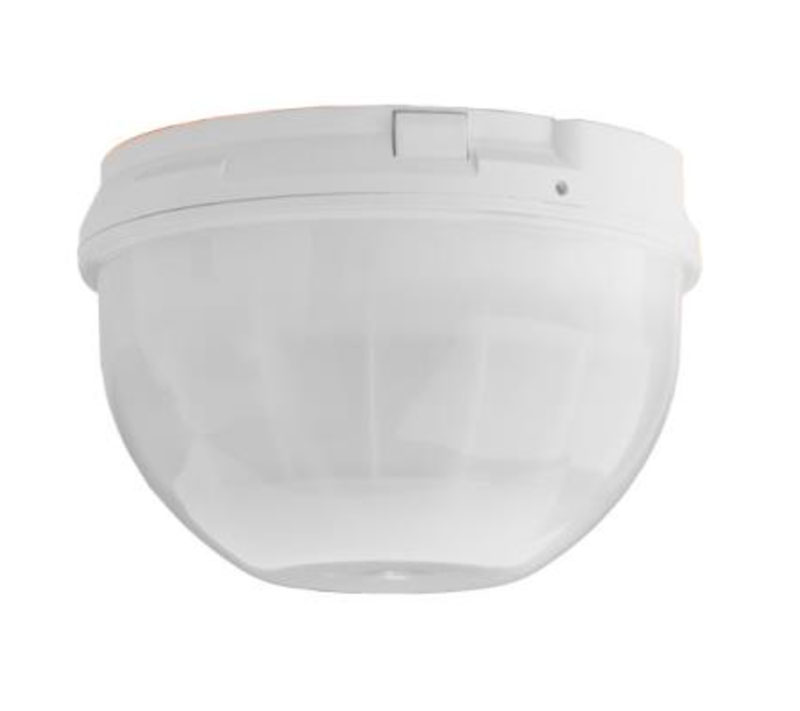

Panoramic TriTech Ceiling Mount Detector, White

The DS9370 Series Panoramic TriTech Ceiling Mount Detector provides PIR and Microwave, 360 Deg. X 21m (70') diameter coverage and 2.4m to 7.6m (8' to 25') mounting height.

First Step Processing (FSP) allows virtually instant response to human targets without sacrificing false alarm immunity to other sources.

• High efficiency LED and light-pipe system provide walk test indication that is easily viewable from any angle and at any mounting height.
• Alarm memory feature allows detector to latch the alarm LED to aid in response.
• Remote LED walk-test control allows the LED to be enabled or disabled using a switched input without accessing the detector.
