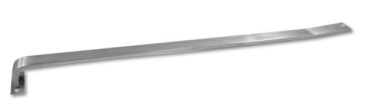

Burns 416S Push Bar is a door hardware component designed for ease of access. It features an overall length defined by the base dimensions of Base: 1" × 3" x 1/8", Clearance: 1-1/2", and Projection: 1-7/8". The material size is 3/8" × 1-1/2". Specified fastener: Wood Door - #14 × 1 WS, 2 #8 X 1 (Surface Mount); Metal Door - 1/4-20 × 1 MS, 2 #8 X 1 SMS (Surface Mount). Mounting options can be specified when ordering. ANSI/BHMA A156.6 Type J501.
Push Bar
Ansi: J501
Base: 1" × 3" x 1/8"
Clearance: 1-1/2"
Fasteners: Wood Door - #14 × 1 WS, 2 #8 X 1 (Surface Mount) Metal Door - 1/4-20 × 1 MS, 2 #8 X 1 SMS(Surface Mount)
Finishes: US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material: Aluminum Brass Bronze Stainless Steel
Material_size: 3/8" × 1-1/2"
Projection: 1-7/8"
