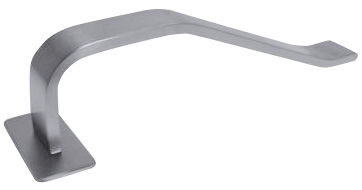

Burns 417 Lever Protector Bar is a door hardware solution designed for added protection. The base dimensions are 1-3/4" × 3-1/2". The projection is 3-1/4". Specified fastener: Type 1 - 1/4-20 Truss Head Thru Bolts for 1-3/4" Door. Fastener options can be specified when ordering. ANSI/BHMA A156.6 Type 1.
Lever Protector Bar
Base: 1-3/4" × 3-1/2"
Clearance: --
Fastener_options: Security Fasteners
Fasteners: Type 1 - 1/4-20 Truss Head Thru Bolts for 1-3/4" Door
Finishes: US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material: Brass Bronze Stainless Steel Aluminum
Material_size: 3/8" × 1-1/2"
Projection: 3-1/4"
