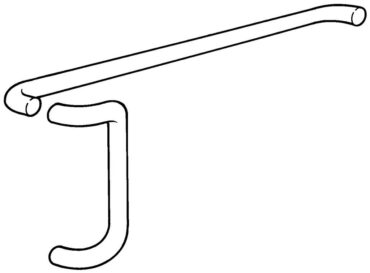

Burns 422 x 39C Push Pull Bar Set is designed for commercial door applications. The clearance is Push Bar: 1-1/8", Pull: 1-3/4". The projection is Push Bar: 2-1/8", Pull: 2-3/4". The material size is Push Bar/Pull: 1" Ø Solid, and Pull: 10" center-to-center with a 90-degree offset. ANSI/BHMA A156.6 Type J504. Specified fastener: Standard: (2) Type 1MD-5/16"-18 × 2-1/2 Thru Bolts and Finish Washers, (1) Type 5MD - Back to Back Conehead. Mounting options can be specified when ordering.
Push Pull Bar Set
Ansi: J504
Clearance: Push Bar: 1-1/8" Pull: 1-3/4"
Fasteners: Standard: (2) Type 1MD- 5/16"-18 × 2-1/2 Thru Bolts and Finish Washers (1) Type 5MD - Back to Back Conehead
Finishes: US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material: Aluminum Brass Bronze Stainless Steel
Material_size: Push Bar/Pull: 1" Ø Solid Pull: 10" ctc 90 degree offset
Projection: Push Bar: 2-1/8" Pull: 2-3/4"
