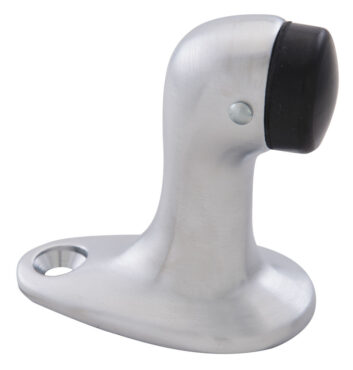

Burns 528 Heavy Duty Floor Stop is designed to prevent damage to walls and doors. Its overall length is 1-1/2" × 2-12", with a projection of 2-7/8". The ANSI/BHMA A156.6 Type L02131 is applicable. Specified fastener: (1) #14 × 1-1/2" SMS with plastic anchor, (1) 1/4-20 x 3/4" MS with lead anchor, (1) 5/16-18 x 2-1/2" stud with lead anchor, (1) 5/16-18 x 2-1/2" hanger bolt. Mounting options can be specified when ordering.
Heavy Duty Floor Stop - 2-7/8" Projection
Ansi: L02131
Finishes: US3/605 – Bright Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26D/626 – Satin Chrome Plated
Material: Cast Brass or Bronze with Black Bumper
Size: 1-1/2" × 2-12" Base x 2-7/8" Projection
Standard_fasteners: (1) #14 × 1-1/2" SMS with plastic anchor (1) 1/4-20 x 3/4" MS with lead anchor (1) 5/16-18 x 2-1/2" stud with lead anchor (1) 5/16-18 x 2-1/2" hanger bolt
