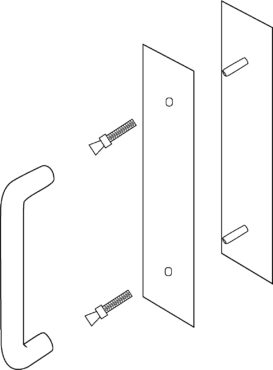

Burns 73L x 5325B Concealed Mount is a door pull and push plate assembly. The plate size is 3-1/2" x 15". The pull plate has a thickness of .050. The pull size is 3/4" Dia. with a center-to-center measurement of 8". The push plate has a thickness of .125. Specified fastener: 1/4-20 x 1-1/4" Conehead. Mounting options can be specified when ordering.
Concealed Mount
Finishes: US32/629 US32D/630 Powder Coat Dark Bronze Flat Black
Plate_size: 3-1/2" x 15"
Pull_plate: .050 Thick
Pull_size: 3/4" Dia. x 8" cc
Push_plate: .125 Thick
Standard_fastener: 1/4-20 x 1-1/4" Conehead
