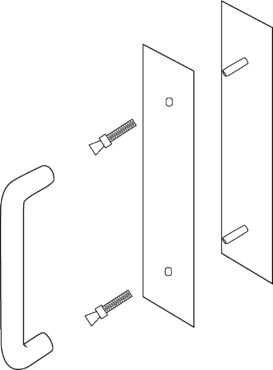

Burns 73L x 53M26D is a concealed mount pull and push plate set. The pull plate has an overall length of 15 inches and a plate size of 3-1/2 inches by 15 inches. The pull size is 1-1/4 inches in diameter with a center-to-center measurement of 12 inches. The pull plate thickness is .050 and the push plate thickness is .125. Specified fastener: 1/4-20 x 1-1/4 Conehead. Mounting options can be specified when ordering.
Concealed Mount
Finishes: US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Plate_size: 3-1/2" x 15"
Pull_plate: .050 Thick
Pull_size: 1-1/4" Dia. x 12" cc
Push_plate: .125 Thick
Standard_fastener: 1/4-20 x 1-1/4" Conehead
