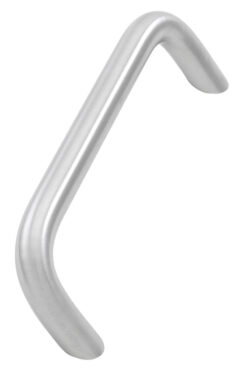

Burns M36D Offset Pull is an offset pull designed for doors. Overall length: 13-1/4". Base: 1-1/4" Oval. Centers: 12". Clearance: 1-1/2". Offset: 3-1/2". Projection: 2-3/4". Specified fastener: Type 1MD - 5/16-18 × 2-1/2 Thru Bolt & Finish Washer (1-3/4" door). Mounting options can be specified when ordering. ANSI/BHMA A156.6 Type J402.
Offset Pull 60º
Ansi: J402
Base: 1-1/4" Oval
Centers: 12"
Clearance: 1-1/2"
Finishes: US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material_size: 1-1/4" Round
Mounting_options: Type 5MD Back to Back Mtg on 1-3/4" Door Type 6MD Concealed Mtg on Metal Door Type 7MD Concealed Mtg on Wood Door Type 9MD Decorative Blind Head
Offset: 3-1/2"
Overall: 13-1/4"
Projection: 2-3/4"
Standard_fasteners: Type 1MD - 5/16-18 × 2-1/2 Thru Bolt & Finish Washer (1-3/4" door)
