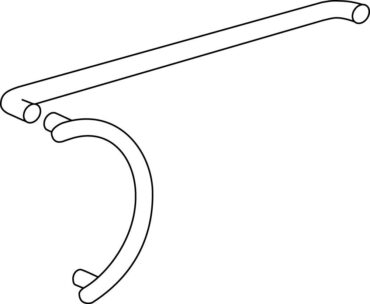

Burns M422 x M49D Push Pull Bar Set is a door hardware solution for easy access. Overall length is 12" center-to-center. Clearance is Push Bar: 1-1/2", Pull: 1-1/2". Projection is Push Bar: 2-3/4", Pull: 2-3/4". Specified fastener: Standard: (2) Type 1MD - 5/16-18 × 2-1/2 Thru Bolts and Finish Washers (1) Type 5MD - Back to Back Mounting. Mounting options can be specified when ordering. ANSI/BHMA A156.6 Type J504.
Push Pull Bar Set
Ansi: J504
Clearance: Push Bar: 1-1/2" Pull: 1-1/2"
Fasteners: Standard: (2) Type 1MD - 5/16-18 × 2-1/2 Thru Bolts and Finish Washers (1) Type 5MD - Back to Back Mounting
Finishes: US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material: Aluminum Brass Bronze Stainless Steel
Material_size: Push Bar/Pull: 1-1/4" Ø Pull: 12" ctc C Shaped Offset
Projection: Push Bar: 2-3/4" Pull: 2-3/4"
