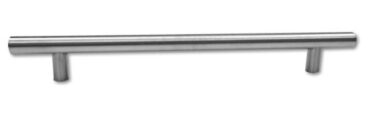

Burns M424 Push Bar with Posts is designed for easy access and operation. The dimensions include base of 1" Rd, clearance of 1-1/2", and projection of 2-3/4". Fastener options can be specified when ordering: Type 5MD Back to Back Mounting on 1-3/4" Door, Type 6MD Concealed Mounting on Metal Door, Type 7MD Concealed Mounting on Wood Door, Type 9MD Decorative Blind Head, and Type 10MD Back to Back Mounting on Glass Door. Specified fastener: Type 1MD - 5/16-18 × 2-1/2 Thru Bolt & Finish Washer. ANSI/BHMA A156.6 Type J501.
Push Bar with Posts
Ansi: J501
Base: 1" Rd
Clearance: 1-1/2"
Fastener_options: Type 5MD Back to Back Mtg on 1-3/4" Door Type 6MD Concealed Mtg on Metal Door Type 7MD Concealed Mtg on Wood Door Type 9MD Decorative Blind Head Type 10MD Back to Back Mtg on Glass Door
Fasteners: Type 1MD - 5/16-18 × 2-1/2 Thru Bolt & Finish Washer
Finishes: US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US1-0/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US2-8/628 – Satin Anodized Aluminum US3-2/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material: Aluminum Brass Bronze Stainless Steel
Material_size: 1-1/4" Rd
Projection: 2-3/4"
