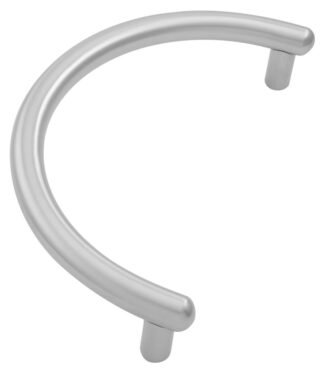

Burns M49D C-Shaped Offset Pull is designed for versatile applications. The overall length is 13-1/4", with a projection of 2-3/4". The base diameter is 1". The centers measure 12", and the clearance is 1-1/2". The material size is 1-1/4" round. Mounting options can be specified when ordering. Specified fastener: Type 1MD - 5/16-18 × 2-1/2 Thru Bolt & Finish Washer. ANSI/BHMA A156.6 Type 1.
C-Shaped Offset Pull
Base: 1" Diameter
Centers: 12"
Clearance: 1-1/2"
Finishes: US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US10/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US26/625 – Bright Chrome Plated US26D/626 – Satin Chrome Plated US28/628 – Satin Anodized Aluminum US32/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material_size: 1-1/4" Round
Mounting_options: Type 5MD Back to Back Mtg on 1-3/4" Door Type 6MD Concealed Mtg on Metal Door Type 7MD Concealed Mtg on Wood Door Type 9MD Decorative Blind Head Type 10MD Back to Back Mtg on Glass Door
Offset: 7-1/2"
Overall: 13-1/4"
Projection: 2-3/4"
Standard_fasteners: Type 1MD - 5/16-18 × 2-1/2 Thru Bolt & Finish Washer
