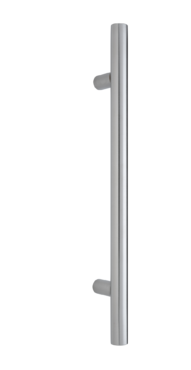

Burns VP4240 Straight Post Mount - Square Ends is designed for versatile mounting options. Overall length ranges from 85" to 108". The diameter is 1". Projection measures 2-1/2". Specified fastener options include TYPE 1MD - Single Mount - Thru Bolt - 5/16-18 × 2-1/2" T.B. & Finish Washer, TYPE 5MD - Back to Back Mount - 5/16-18 x 2-3/8" Conehead for wood or metal doors, and several others for various door types. Mounting options can be specified when ordering. ANSI/BHMA A156.6 Type 1.
Straight Post Mount - Square Ends
Fasteners: • TYPE 1MD - Single Mount - Thru Bolt - 5/16-18 × 2-1/2" T.B. & Finish Washer • TYPE 5MD - Back to Back Mount - 5/16-18 x 2-3/8" Conehead; for Wood or Metal doors • TYPE 6MD - Single Mount - Concealed - 5/16-18 Tapped Thread in Door; for Metal doors • TYPE 6HDR - Single Mount - Concealed - 1/4-20 x 1" with Rivnut; for Metal Doors • TYPE 7MD - Single Mount - Concealed - #10 × 2" Wood Screw; for Wood doors • TYPE 9MD - Single Mount - Decorative Blind Head - 5/16-18 stud with cap; S pecify Wood, Metal or Glass door and thickness • TYPE 10MD - Back to Back Mount - 5/16-18 × 1-1/4" Conehead with 5/8" Ø Plexiglass Sleeve, Metal and Vinyl Washers; for Glass doors; specify door thickness
Finishes: US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US1-0/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US2-8/628 – Satin Anodized Aluminum US3-2/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel (SHOWN IN PHOTO) Flat Black Powder Coat Dark Bronze Powder Coat
Material: Aluminum Brass Bronze Stainless Steel
Options: Powder Coat Split Finish
Size: 1" Diameter x 2-1/2" Projection
