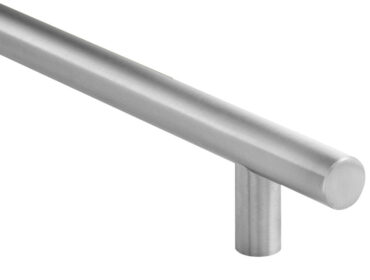

Burns VP4241 Straight Post Mount - Square Ends is designed for various door applications. Overall length is 85" to 108". Size is 1-1/4" diameter with a projection of 2-3/4". Specified fasteners include TYPE 1MD - Single Mount - Thru Bolt - 5/16-18 × 2-1/2" T.B. & Finish Washer, TYPE 5MD - Back to Back Mount - 5/16-18 x 2-3/8" Conehead for Wood or Metal doors, TYPE 6MD - Single Mount - Concealed - 5/16-18 Tapped Thread in Door for Metal doors, TYPE 6HDR - Single Mount - Concealed - 1/4-20 x 1" with Rivnut for Metal doors, TYPE 7MD - Single Mount - Concealed - #10 × 2" Wood Screw for Wood doors, TYPE 9MD - Single Mount - Decorative Blind Head - 5/16-18 stud with cap, and TYPE 10MD - Back to Back Mount - 5/16-18 × 1-1/4" Conehead with 5/8" Ø Plexiglass Sleeve for Glass doors. Mounting options can be specified when ordering. ANSI/BHMA A156.6 Type 1.
Straight Post Mount - Square Ends
Ship via: No UPS - Common Carrier Only
Fasteners: • TYPE 1MD - Single Mount - Thru Bolt - 5/16-18 × 2-1/2" T.B. & Finish Washer • TYPE 5MD - Back to Back Mount - 5/16-18 x 2-3/8" Conehead; for Wood or Metal doors • TYPE 6MD - Single Mount - Concealed - 5/16-18 Tapped Thread in Door; for Metal doors • TYPE 6HDR - Single Mount - Concealed - 1/4-20 x 1" with Rivnut; for Metal Doors • TYPE 7MD - Single Mount - Concealed - #10 × 2" Wood Screw; for Wood doors • TYPE 9MD - Single Mount - Decorative Blind Head - 5/16-18 stud with cap; S pecify Wood, Metal or Glass door and thickness • TYPE 10MD - Back to Back Mount - 5/16-18 × 1-1/4" Conehead with 5/8" Ø Plexiglass Sleeve, Metal and Vinyl Washers; for Glass doors; specify door thickness
Finishes: US3/605 – Bright Brass US4/606 – Satin Brass US5/609 – Antique Brass US1-0/612 – Satin Bronze US10B/613 – Dark Bronze Oxidized US2-8/628 – Satin Anodized Aluminum US3-2/629 – Bright Stainless Steel US32D/630 – Satin Stainless Steel Flat Black Powder Coat Dark Bronze Powder Coat
Material: Brass Bronze Stainless Steel Aluminum
Options: Powder Coat Split Finish
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Size: 1-1/4" Diameter x 2-3/4" Projection
