Burns VP9842-1 Half Height Horizontal Locking Pull is designed for use on wood, metal, or glass doors. Overall length: 1-1/2" diameter; clearance: 1-1/2". Cylinder must be positioned 34" - 48" above finished floor. This pull can accommodate 1-3/8" - 2-1/2" thick wood or metal doors and 3/8" - 7/8" thick glass doors. Mounting options can be specified when ordering. Specified fastener: TYPE 5MD - Back to Back Mount - 5/16-18 x 2-1/2" cone head for wood or metal doors; TYPE 10MD - Back to Back Mount - 5/16-18 x 1-1/4" cone head for glass doors. ANSI/BHMA A156.6 Type 1.

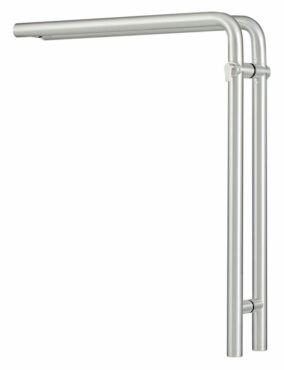

Half Height Horizontal Locking Pull - Bolt Down
Comments: • Cylinder must be 34" - 48" above finished floor. • 1-3/8" - 2-1/2" wood or metal doors • 3/8" - 7/8" glass doors
Fasteners: • TYPE 5MD - Back to Back Mount - 5/16-18 x 2-1/2" cone head; standard with straight posts; for Wood or Metal doors; specify door thickness • TYPE 10MD - Back to Back Mount - 5/16-18 × 1-1/4" cone head; standard with straight posts; for Glass doors; specify door thickness
Finishes: US10B/613 US32D/630 US32/629 FBPC
Material: Stainless Steel
Options: Split Finish Powder Coat
Size: 1-1/2" Diameter x 1-1/2" Clearance
