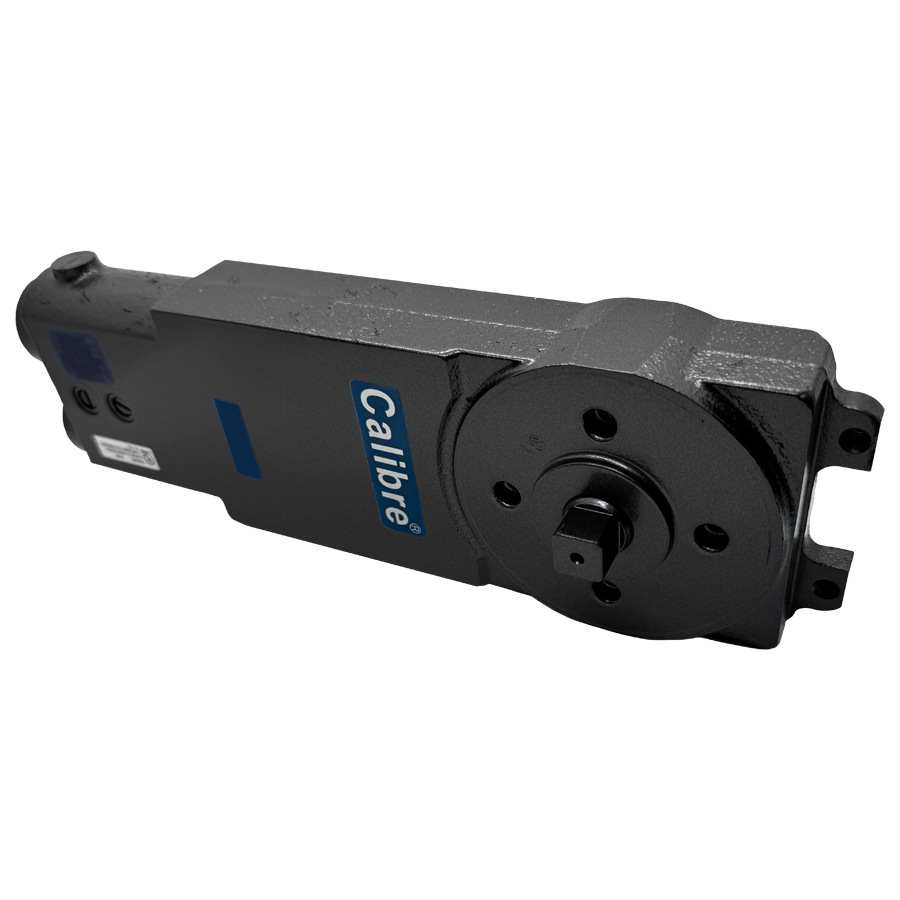

Calibre CA2211-S-DP ADA OHC Closer, 105 Back Stop, Non Hold Open, X-Light Spring, Dual Pivot

Calibre Door Closers CA2211-S-DP ADA Overhead Concealed (OHC) Closer is designed to enhance accessibility and streamline door operation in various settings. This model features a 105-degree backstop with a non-hold open function, ensuring that doors close securely without remaining ajar, which is crucial for safety and energy efficiency. Constructed to meet Underwriters' Laboratories Inc. standards, this closer is UL10C listed for positive pressure and complies with fire safety regulations. Its dual-speed control valves allow for precise adjustments to both closing and latching speeds, ensuring smooth operation tailored to your specific needs. The X-Light spring tension provides a gentle opening force of 8.5 lbs, making it ADA compliant for ease of use. The versatile design accommodates both center hung and offset hung door applications, equipped with a dual-purpose bottom pivot set that can be mounted either on the floor or a threshold. Installation is straightforward, fitting within aluminum storefront headers as compact as 1-3/4" x 4". The Calibre CA2211-S-DP is non-handed, making it suitable for any door configuration, while its stable hydraulic fluid guarantees reliable performance in varying climates. This overhead closer is an ideal choice for professionals seeking durability, compliance, and adaptability in door hardware.

ADA Overhead Concealed (OHC) Closer, 105 Degree Back Stop, Non Hold Open (NHO), X-Light Spring Tension, Dual Purpose Bottom Pivot

Features:

• Underwriters' Laboratories Inc. Listed for units without hold open feature. UL10C for positive pressure and certified to conform to UBC 7.2 (1997) BS476 for Fire Safety.
• Center Hung Door Application: Double or Single Acting (applied door stop renders unit Single Acting). Adjustable 'S' type side loading or 'A' type, 'K' type, and 'PT' type end loading arms are available for center pivoted door applications.
• Offset Hung Door Application: Single Acting Offset 'JO' and 'VO' type top arms are available for butt hung or offset pivoted applications.
• Standard Fixed spring tensions available:
• Light
• Medium
• Heavy
• Dual Speed Control Valves: Closing and Latching speeds controlled by separate regulating valves, fully adjustable after installation.
• CA3010-DP dual purpose radial ball-bearing bottom pivot set is provided for floor or threshold mounted (Side or End Loading) center pivoted installation. CA3010-G and CA3010-GE bottom pivot sets are optional, and must be ordered separately.
• Universal application. Non-handed for left or right door application.
• Installs in an aluminum storefront header or transom as small as 1-3/4" x 4"
• Positive cam centering for alignment and to hold door closed against normal wind or draft conditions.
• Stable hydraulic door check fluid for any climatic operation and provides constant lubrication.

Functions:

• Built-in positive Back Stop and Hold-Open positions are available:
• 105-deg Back Stop with Hold-Open
• 105-deg Back Stop-no Hold-Open
• 90-deg Back Stop with Hold-Open
• 90-deg Back Stop-no Hold-Open
• Handicap (ADA) spring tensions available for use on center pivoted door applications:
• 5.0 lb. Opening Force (Center Hung door)
• 8.5 lb. Opening Force (Center Hung door)

Center Hung Doors:

• Complete units for aluminum doors and frames are furnished with top arm assembly ('S' side loading, 'A', 'K', or 'PT' end loading), adjustable dual purpose CA3010-DP bottom pivot set for floor or threshold mounting (side or end loading), and CA3010-FS anchor set with all fasteners.
• 'S' type side loading top arm, CA3010-DP adjustable dual purpose pivot set, and the CA3010-FS anchor set will be furnished unless otherwise specified by the customer.
• 'A' type, 'K' type or 'PT' type end loading, and 'JO' or 'VO' type offset arms are optional, but must be specified.

Offset Hung Doors:

• Complete units for offset pivoted or butt hung aluminum doors and frames are furnished with a 'JO' or 'VO' type offset arm and CA3010-FS anchor set with all fasteners.
• Note: Offset pivots or butt hinges not included. Top Door Stop / Arm Cover by others.
