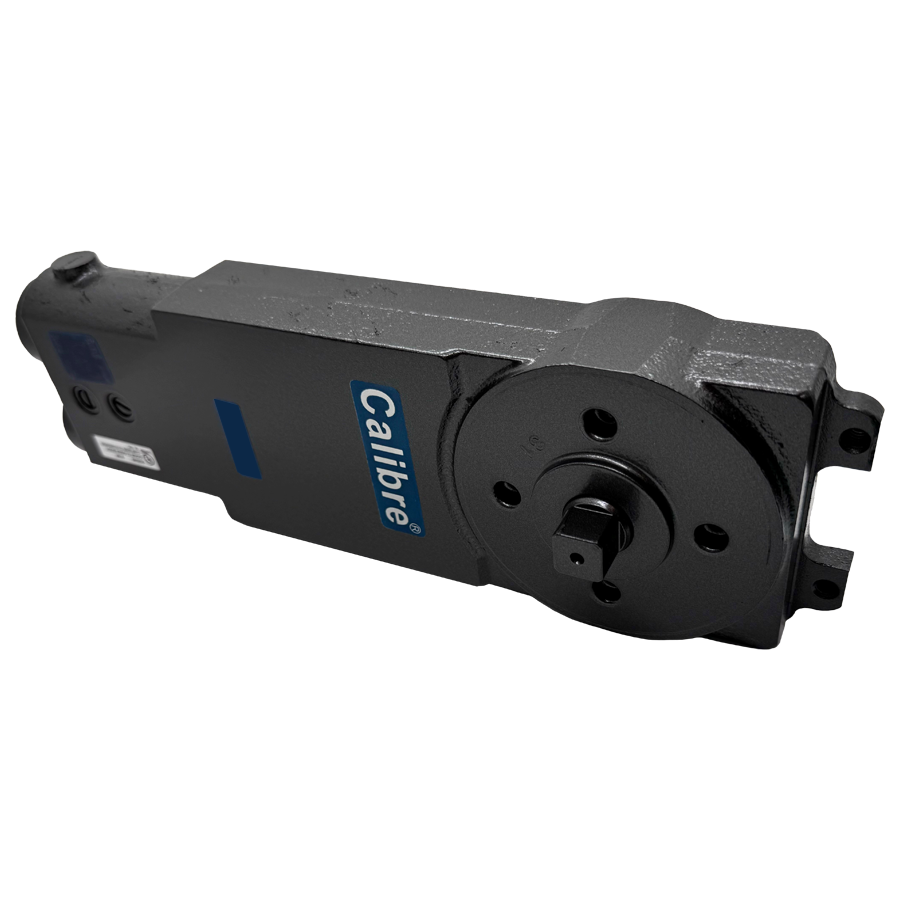

Calibre CA2230-S-DP Medium OHC Closer, 105 Back Stop, Hold Open, Medium Spring Tension

Calibre Door Closers CA2230-S-DP Medium Overhead Concealed (OHC) Closer offers robust functionality combined with elegant design. This door closer features a 105-degree back stop and a hold-open option, making it an ideal choice for high-traffic areas where convenience and safety are paramount. Designed for versatility, the CA2230-S-DP is suitable for both center hung and offset hung door applications. It supports adjustable spring tensions-light, medium, and heavy-allowing customization to meet specific needs. Dual speed control valves ensure that closing and latching speeds can be finely tuned, providing a smooth operation tailored to your environment. This non-handed unit can be installed in aluminum storefront headers or transoms as narrow as 1-3/4" x 4", making it incredibly adaptable. The CA3010-DP dual purpose bottom pivot set facilitates floor or threshold mounting, ensuring stability regardless of climatic conditions thanks to its stable hydraulic door check fluid. The closer is Underwriters' Laboratories Inc. Listed for safety, confirming its compliance with fire safety standards. Whether you need a door closer for a commercial space or a residential setting, the Calibre CA2230-S-DP delivers reliability and efficiency, ensuring your doors function perfectly every time.

Medium Overhead Concealed (OHC) Closer, 105 Degree Back Stop, Hold Open, Medium Spring Tension, Dual Purpose Bottom Pivot

Features:

• Underwriters' Laboratories Inc. Listed for units without hold open feature. UL10C for positive pressure and certified to conform to UBC 7.2 (1997) BS476 for Fire Safety.
• Center Hung Door Application: Double or Single Acting (applied door stop renders unit Single Acting). Adjustable 'S' type side loading or 'A' type, 'K' type, and 'PT' type end loading arms are available for center pivoted door applications.
• Offset Hung Door Application: Single Acting Offset 'JO' and 'VO' type top arms are available for butt hung or offset pivoted applications.
• Standard Fixed spring tensions available:
• Light
• Medium
• Heavy
• Dual Speed Control Valves: Closing and Latching speeds controlled by separate regulating valves, fully adjustable after installation.
• CA3010-DP dual purpose radial ball-bearing bottom pivot set is provided for floor or threshold mounted (Side or End Loading) center pivoted installation. CA3010-G and CA3010-GE bottom pivot sets are optional, and must be ordered separately.
• Universal application. Non-handed for left or right door application.
• Installs in an aluminum storefront header or transom as small as 1-3/4" x 4"
• Positive cam centering for alignment and to hold door closed against normal wind or draft conditions.
• Stable hydraulic door check fluid for any climatic operation and provides constant lubrication.

Functions:

• Built-in positive Back Stop and Hold-Open positions are available:
• 105-deg Back Stop with Hold-Open
• 105-deg Back Stop-no Hold-Open
• 90-deg Back Stop with Hold-Open
• 90-deg Back Stop-no Hold-Open
• Handicap (ADA) spring tensions available for use on center pivoted door applications:
• 5.0 lb. Opening Force (Center Hung door)
• 8.5 lb. Opening Force (Center Hung door)

Center Hung Doors:

• Complete units for aluminum doors and frames are furnished with top arm assembly ('S' side loading, 'A', 'K', or 'PT' end loading), adjustable dual purpose CA3010-DP bottom pivot set for floor or threshold mounting (side or end loading), and CA3010-FS anchor set with all fasteners.
• 'S' type side loading top arm, CA3010-DP adjustable dual purpose pivot set, and the CA3010-FS anchor set will be furnished unless otherwise specified by the customer.
• 'A' type, 'K' type or 'PT' type end loading, and 'JO' or 'VO' type offset arms are optional, but must be specified.

Offset Hung Doors:

• Complete units for offset pivoted or butt hung aluminum doors and frames are furnished with a 'JO' or 'VO' type offset arm and CA3010-FS anchor set with all fasteners.
• Note: Offset pivots or butt hinges not included. Top Door Stop / Arm Cover by others.
