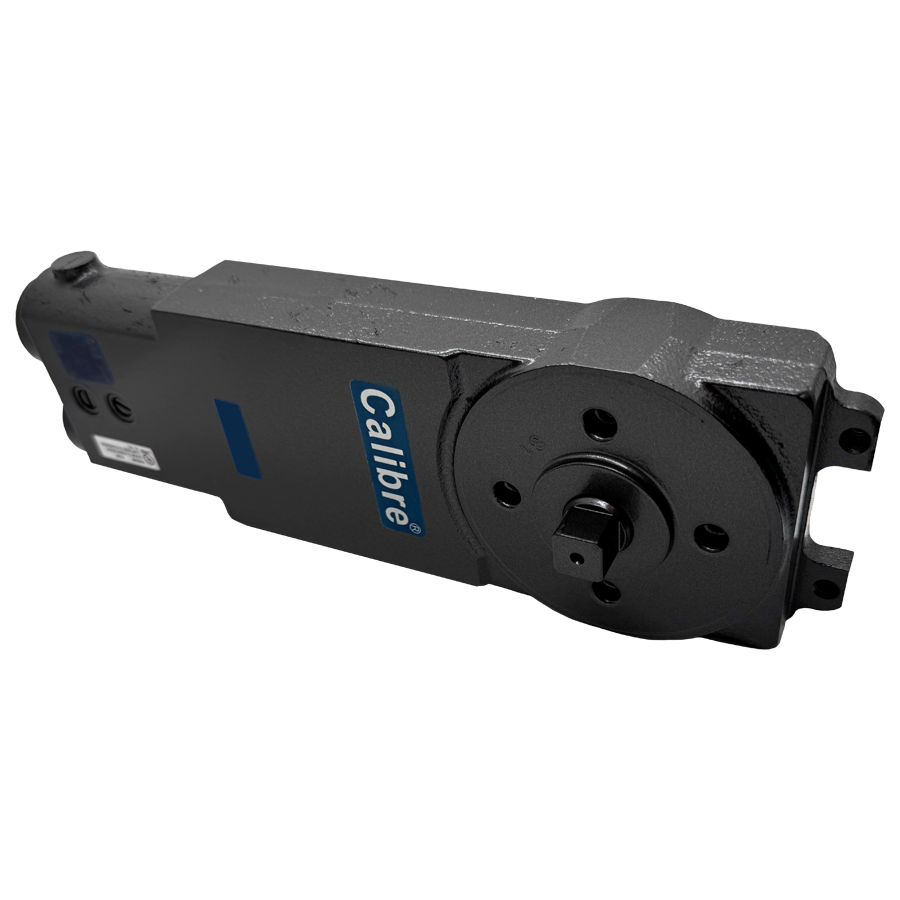

Calibre CA2230-S-GE Medium OHC Closer, 105 Back Stop, Hold Open, JED Threshold Mount Pivot

Calibre Door Closers CA2230-S-GE Medium Overhead Concealed (OHC) Closer offers a reliable solution for your door control needs with its 105-degree back stop and hold-open feature. Designed for both center hung and offset hung door applications, this closer is versatile and adaptable, catering to various installation requirements. The medium spring tension ensures optimal operation, while the dual-speed control valves allow for independent adjustment of closing and latching speeds, enhancing user convenience. This model is Underwriters' Laboratories Inc. listed, meeting UL10C standards for positive pressure and certified for fire safety according to UBC 7.2 (1997) BS476. The assembly includes an adjustable CA3010-DP dual-purpose bottom pivot set, which facilitates floor or threshold mounting, ensuring stability and ease of use. Its non-handed design enables installation on left or right doors, making it universally applicable. With stable hydraulic door check fluid, the CA2230-S-GE performs consistently in all climatic conditions, providing constant lubrication. Additionally, built-in positive cam centering helps keep the door aligned and securely closed against drafts. For professionals seeking robust and efficient door closer solutions, the Calibre Door Closers CA2230-S-GE stands out as a trusted choice.

Medium Overhead Concealed (OHC) Closer, 105 Degree Back Stop, Hold Open, Medium Spring Tension, JED Threshold Mount Bottom Pivot

Features:

• Underwriters' Laboratories Inc. Listed for units without hold open feature. UL10C for positive pressure and certified to conform to UBC 7.2 (1997) BS476 for Fire Safety.
• Center Hung Door Application: Double or Single Acting (applied door stop renders unit Single Acting). Adjustable 'S' type side loading or 'A' type, 'K' type, and 'PT' type end loading arms are available for center pivoted door applications.
• Offset Hung Door Application: Single Acting Offset 'JO' and 'VO' type top arms are available for butt hung or offset pivoted applications.
• Standard Fixed spring tensions available:
• Light
• Medium
• Heavy
• Dual Speed Control Valves: Closing and Latching speeds controlled by separate regulating valves, fully adjustable after installation.
• CA3010-DP dual purpose radial ball-bearing bottom pivot set is provided for floor or threshold mounted (Side or End Loading) center pivoted installation. CA3010-G and CA3010-GE bottom pivot sets are optional, and must be ordered separately.
• Universal application. Non-handed for left or right door application.
• Installs in an aluminum storefront header or transom as small as 1-3/4" x 4"
• Positive cam centering for alignment and to hold door closed against normal wind or draft conditions.
• Stable hydraulic door check fluid for any climatic operation and provides constant lubrication.

Functions:

• Built-in positive Back Stop and Hold-Open positions are available:
• 105-deg Back Stop with Hold-Open
• 105-deg Back Stop-no Hold-Open
• 90-deg Back Stop with Hold-Open
• 90-deg Back Stop-no Hold-Open
• Handicap (ADA) spring tensions available for use on center pivoted door applications:
• 5.0 lb. Opening Force (Center Hung door)
• 8.5 lb. Opening Force (Center Hung door)

Center Hung Doors:

• Complete units for aluminum doors and frames are furnished with top arm assembly ('S' side loading, 'A', 'K', or 'PT' end loading), adjustable dual purpose CA3010-DP bottom pivot set for floor or threshold mounting (side or end loading), and CA3010-FS anchor set with all fasteners.
• 'S' type side loading top arm, CA3010-DP adjustable dual purpose pivot set, and the CA3010-FS anchor set will be furnished unless otherwise specified by the customer.
• 'A' type, 'K' type or 'PT' type end loading, and 'JO' or 'VO' type offset arms are optional, but must be specified.

Offset Hung Doors:

• Complete units for offset pivoted or butt hung aluminum doors and frames are furnished with a 'JO' or 'VO' type offset arm and CA3010-FS anchor set with all fasteners.
• Note: Offset pivots or butt hinges not included. Top Door Stop / Arm Cover by others.

CA2200 Series Parts and Accessories:
