Calibre Door Closers CA5501AL Surface Mount Door Closer SC81 offers robust performance and compliance with a variety of safety standards. Designed to meet ANSI A156.4 Grade 1 specifications, this door closer ensures barrier-free operation, making it an ideal choice for spaces that must adhere to Federal Accessibility Standards (ADA) and ANSI A117.1. Constructed with durability in mind, the CA5501AL is Underwriters' Laboratories Inc. Listed, certified for UL10C, and meets UBC 7.2 (1997) BS476 for fire safety. Its adjustable spring tension allows for flexible installation, accommodating a range of door sizes and weights. Specifically, this model provides an 8-1/2 lb opening force to size 5, with fully adjustable back-check controlled by a separate regulating valve. Measuring 13" in length with a 5-1/8" overall height, the closer features horizontal mounting holes spaced 12" apart and vertical mounting holes at 3/4". The projection from the door is 2-5/16", ensuring a compact fit that maintains aesthetics without compromising functionality. Whether for residential or commercial use, the Calibre CA5501AL is a reliable choice for enhancing door operation while ensuring safety and accessibility.

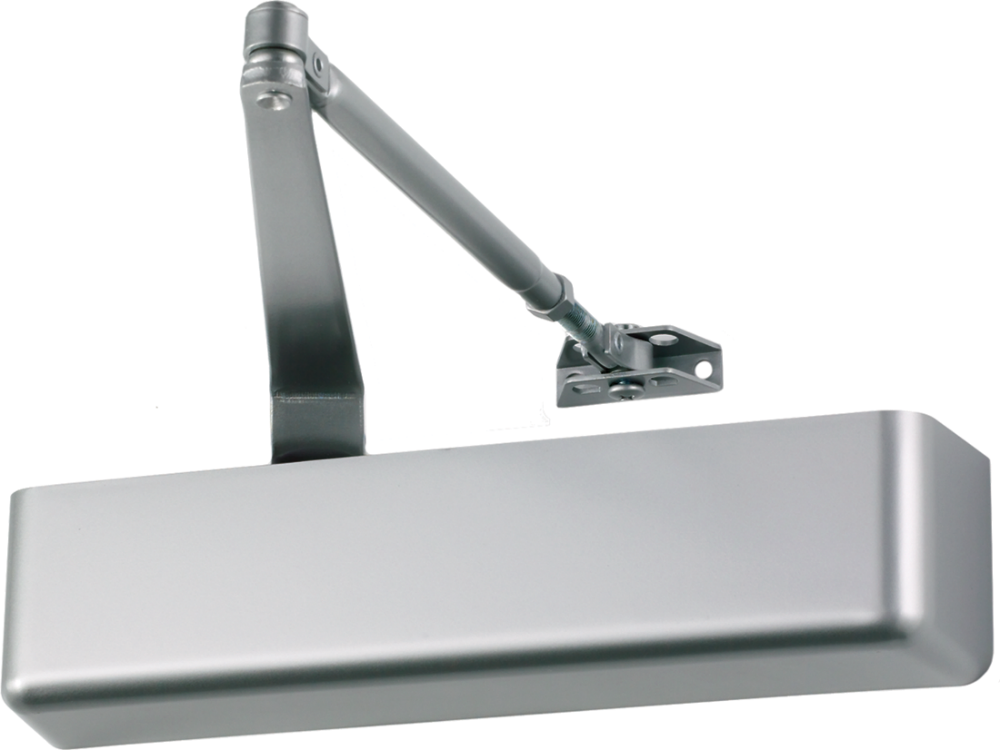

Surface Mount Door Closer SC81, Standard Arm, AL/SP28 Anodized Satin Aluminum
Features:
Closer Overview:
Alternate Codes: 5501AL, 8501, 8501 689, 8501689, 8501SN 689, 8501SN689, CA5501, CA5501 AL, CA5501AL, CDC5501AL, CDCCA5501 AL, CDCCA5501-P-AL, CDCCA5501-PAL, SC81, SC81 AL, SC81AL
Category: Door Closers, Economy Door Closers, Economy Surface Mount
