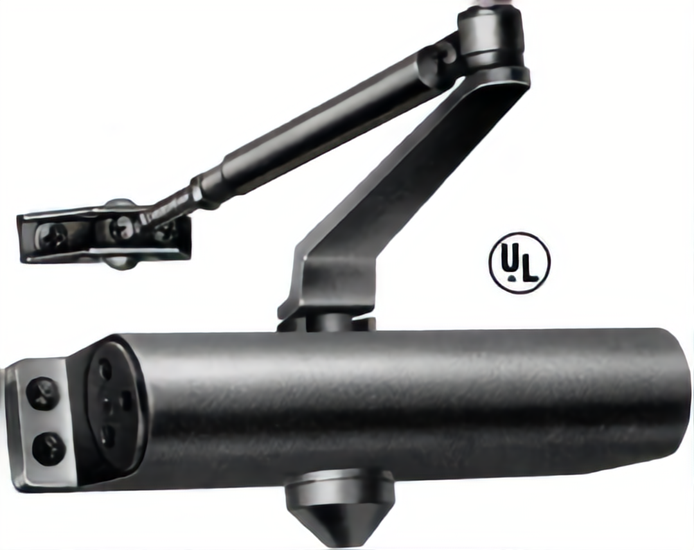

Calibre CA8001P-AL ADA Surface Mount Door Closer, Parallel Arm, AL/SP28 Anodized Satin Aluminum

Calibre Door Closers CA8001P-AL ADA Surface Mount Door Closer offers a perfect blend of reliability and compliance for both residential and commercial applications. Designed to meet ANSI A156.4 Grade 1 standards, this door closer ensures barrier-free operation, adhering to Federal Accessibility Standards (ADA) and ANSI A117.1. Constructed with a high tensile precision die-cast aluminum housing, the CA8001P-AL features a powerful rack and pinion control mechanism. Its adjustable spring tension allows for flexibility in accommodating various door sizes, with an opening force of 8-1/2 lbs. to Size 5. Dual speed control valves provide customizable closing and latching speeds, enhancing usability for all users. This surface mount closer is non-handed, making it suitable for standard, top jamb, or parallel arm installations. The closer is equipped with a stable hydraulic door check fluid, ensuring consistent performance across diverse climatic conditions. Additionally, it can be furnished with an optional hold-open arm that adjusts between 100 to 180 degrees for added convenience. Available in an attractive anodized satin aluminum finish, the CA8001P-AL not only meets stringent safety standards but also enhances the aesthetic appeal of any door. For a durable and efficient door closing solution, choose the Calibre Door Closers CA8001P-AL.

ADA Surface Mount Door Closer, Parallel Arm, AL/SP28 Anodized Satin Aluminum

Features:

• Complies with ANSI A156.4 Grade 1.
• Barrier Free Operation to comply with Federal Accessibility Standards (ADA) and ANSI A117.1 (4,13,11).
• Underwriters' Laboratories Inc. Listed. Listed for UL10C for positive pressure and certified to conform to UBC 7.2 (1997) BS476 for Fire Safety.
• ADA Handicap multi-sized closers with adjustable spring tension for a range of sizes after installation:
• CA8001 - 8-1/2 lb. Opening Force to Size 5. Adjustable spring power with fully adjustable Back-Check controlled by a separate regulating valve, adjustable after installation.
• CA8002 - 5 lb. Opening Force to Size 4. Adjustable spring power with Delayed Closing action controlled by a separate regulating valve, adjustable after installation.
• CA8003 - 5 lb. Opening Force to Size 4. Adjustable spring power only.
• CA8004 - 8-1/2 lb. Opening Force to Size 5. Adjustable spring power only.
• Dual Speed Control Valves : Closing and Latching speeds controlled by separate regulating valves, fully adjustable after installation.
• Universal application. Non-handed for Standard, Top Jamb, or Parallel Arm installation.
• Rack and pinion control mechanism contained in a high tensile precision die cast aluminum housing.
• Stable hydraulic door check fluid for any climatic operation and provides constant lubrication.
• Furnished with regular arm. Hold-open and fusible link hold-open arms optional. Hold-open arms are adjustable from 100-deg to 180-deg of door opening.
• Series CA8000 has available a high impact molded PVC Dress Cover permitting installation on most modern glass and aluminum door without adaptors.
• Attractive Baked Enamel finishes :
• AL - Aluminum
• DU - Storefront Bronze

Closer Overview:

• Length of Closer: 9-3/4"
• Horizontal Mounting Holes: 9-1/16"
• Vertical Mounting Holes: 3/4"
• Overall Height: 4-21/32"
• Top of Door to Bottom of Closer: 2-1/16"
• Height of Closer: 1-3/4"
• Projection from Door: 2-29/32"

Series Parts and Accessories:

Resources

• Spec Sheet
