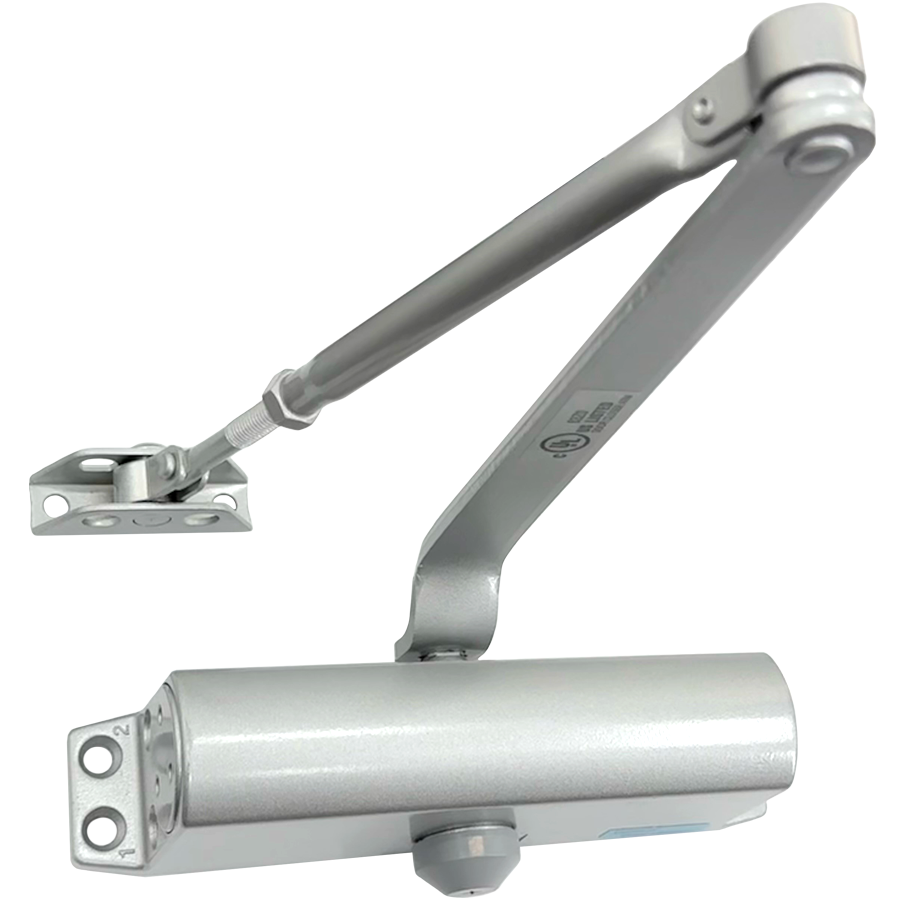

Calibre CA8852P-AL Surface Mount Door Closer, Parallel Arm, Size 2, AL/SP28 Anodized Satin Aluminum

Calibre Door Closers CA8852P-AL Surface Mount Door Closer offers exceptional performance and reliability for various door applications. Designed with a parallel arm configuration, this size 2 closer complies with ANSI A156.4 Grade 1 standards, ensuring durability and safety. It is Underwriters' Laboratories Inc. Listed, certified for positive pressure, and meets stringent fire safety regulations outlined by UBC 7.2 (1997) BS476. Equipped with dual speed control valves, the CA8852P-AL allows for fully adjustable closing and latching speeds, ensuring a smooth and controlled operation. Its non-handed design provides versatility for standard, top jamb, or parallel arm installations, making it suitable for various settings. The closer features a robust rack and pinion control mechanism housed in high tensile precision die-cast aluminum, ensuring longevity. The hydraulic door check fluid is stabilized for optimal performance across diverse climatic conditions, delivering consistent lubrication. Additionally, the unit comes with a regular arm, with optional hold-open and fusible link hold-open arms available, adjustable from 100° to 180° of door opening. Finished in attractive anodized satin aluminum, the CA8852P-AL not only performs exceptionally but also enhances the aesthetic appeal of any entrance. Choose this reliable door closer to ensure seamless functionality and security for your space.

Surface Mount Door Closer, Parallel Arm, Size 2, AL/SP28 Anodized Satin Aluminum

Features:

• Complies with ANSI A156.4 Grade 1.
• Underwriters' Laboratories Inc. Listed. Listed for UL10C for positive pressure and certified to conform to UBC 7.2 (1997) BS476 for Fire Safety.
• Range of Sizes :
• Standard: CA8851, CA8852, CA8853, CA8854 and CA8855
• Back-Check: CA8883, CA8884 and CA8885
• Dual Speed Control Valves : Closing and Latching speeds controlled by separate regulating valves, fully adjustable after installation.
• CA8800 Series has adjustable Back-Check function controlled by a separate regulating valve, fully adjustable after installation.
• Universal application. Non-handed for Standard, Top Jamb, or Parallel Arm installation.
• The CA8850 and CA8880 Series are "fixed" spring door closers with no spring power adjustment.
• Rack and pinion control mechanism contained in a high tensile precision die cast aluminum housing.
• Stable hydraulic door check fluid for any climatic operation and provides constant lubrication.
• Furnished with regular arm. Hold-open and fusible link hold-open arms optional. Hold-open arms are adjustable from 100-deg to 180-deg of door opening.
• CA8850/CA8880 door closers are contained in four body casting sizes. Spring size 1 is contained in a Size 1 body casting, spring size 2 is contained in a Size 2 body casting, spring size 3 is contained in a Size 3 body casting, and spring sizes 4 and 5 are contained in a Size 4 body casting.
• Attractive Baked Enamel finishes:
• AL - Aluminum
• DU - Storefront Bronze

Closer Overview:
