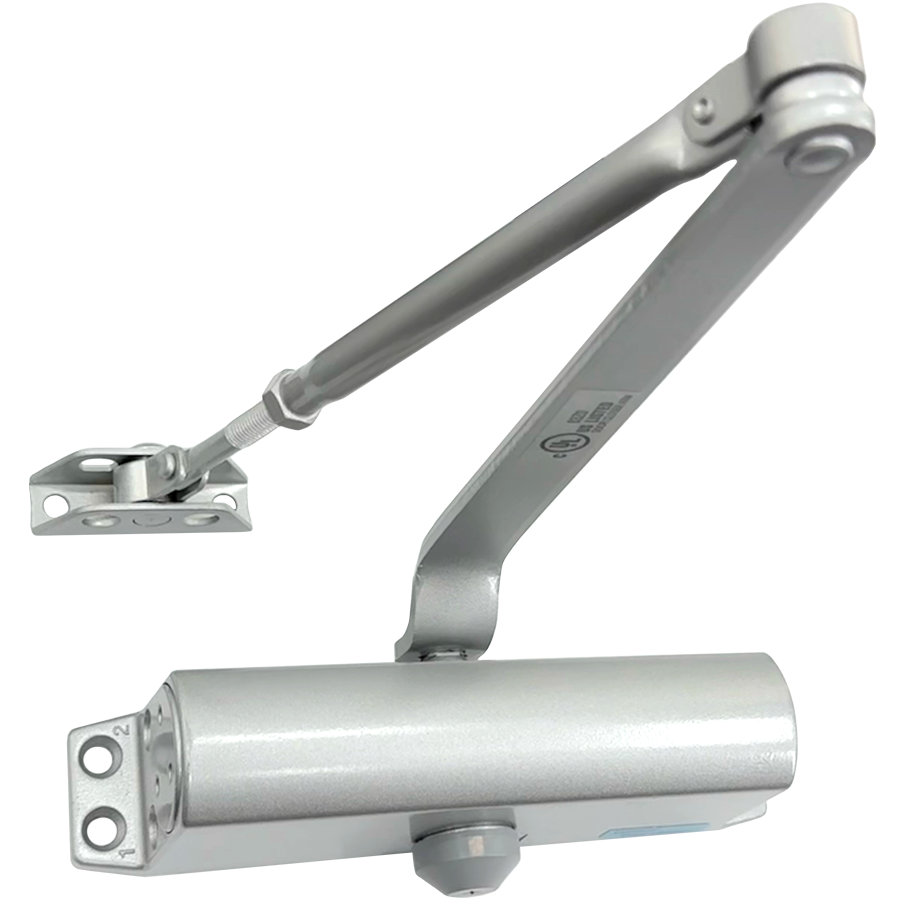

Calibre CA8853P-AL Surface Mount Door Closer, Parallel Arm, Size 3, AL/SP28 Anodized Satin Aluminum

Calibre Door Closers CA8853P-AL Surface Mount Door Closer is engineered for reliability and performance, making it an ideal choice for both commercial and residential applications. This Grade 1 closer complies with ANSI A156.4 standards and is Underwriters' Laboratories Inc. Listed, ensuring it meets stringent fire safety criteria including UL10C for positive pressure and UBC 7.2 (1997) certification. Designed with dual speed control valves, the CA8853P-AL allows for independent adjustment of closing and latching speeds, providing smooth operation tailored to your needs. Its universal, non-handed design accommodates various mounting configurations-Standard, Top Jamb, or Parallel Arm-making installation straightforward. Constructed with a robust rack and pinion mechanism housed in a high-tensile die-cast aluminum body, this door closer ensures durability and consistent performance across different climates. The stable hydraulic fluid guarantees reliability and lubrication throughout its lifecycle. This model features an attractive anodized satin aluminum finish, enhancing its aesthetic appeal while delivering essential functionality. Optional hold-open arms can be adjusted from 100 to 180 degrees, providing added flexibility for high-traffic areas. With its combination of quality and versatility, the Calibre CA8853P-AL is a smart investment for any facility seeking efficient door control solutions.

Surface Mount Door Closer, Parallel Arm, Size 3, AL/SP28 Anodized Satin Aluminum

Features:

• Complies with ANSI A156.4 Grade 1.
• Underwriters' Laboratories Inc. Listed. Listed for UL10C for positive pressure and certified to conform to UBC 7.2 (1997) BS476 for Fire Safety.
• Range of Sizes :
• Standard: CA8851, CA8852, CA8853, CA8854 and CA8855
• Back-Check: CA8883, CA8884 and CA8885
• Dual Speed Control Valves : Closing and Latching speeds controlled by separate regulating valves, fully adjustable after installation.
• CA8800 Series has adjustable Back-Check function controlled by a separate regulating valve, fully adjustable after installation.
• Universal application. Non-handed for Standard, Top Jamb, or Parallel Arm installation.
• The CA8850 and CA8880 Series are "fixed" spring door closers with no spring power adjustment.
• Rack and pinion control mechanism contained in a high tensile precision die cast aluminum housing.
• Stable hydraulic door check fluid for any climatic operation and provides constant lubrication.
• Furnished with regular arm. Hold-open and fusible link hold-open arms optional. Hold-open arms are adjustable from 100-deg to 180-deg of door opening.
• CA8850/CA8880 door closers are contained in four body casting sizes. Spring size 1 is contained in a Size 1 body casting, spring size 2 is contained in a Size 2 body casting, spring size 3 is contained in a Size 3 body casting, and spring sizes 4 and 5 are contained in a Size 4 body casting.
• Attractive Baked Enamel finishes:
• AL - Aluminum
• DU - Storefront Bronze

Closer Overview:
