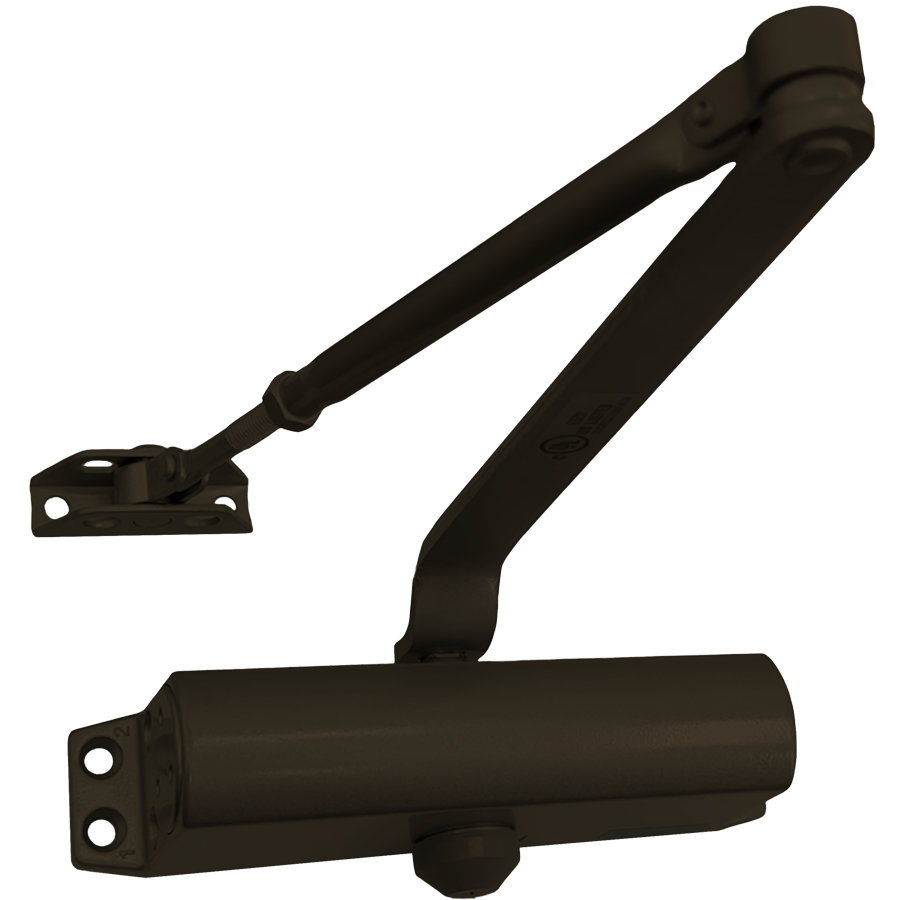

Calibre CA8854P-DU Surface Mount Door Closer, Parallel Arm, Size 4, DU/SP313 Anodized Dark Bronze

Calibre Door Closers CA8854P-DU Surface Mount Door Closer, Parallel Arm, Size 4, DU/SP313 Anodized Dark Bronze offers a robust solution for ensuring secure and controlled door functionality. This door closer complies with ANSI A156.4 Grade 1 standards and is Underwriters' Laboratories Inc. Listed for UL10C, making it a reliable choice for both commercial and residential applications. Designed for universal application, this non-handed closer accommodates Standard, Top Jamb, or Parallel Arm installations. The dual speed control valves allow for separate regulation of closing and latching speeds, ensuring smooth and effective operation. Additionally, the adjustable back-check function provides enhanced control over the door's movement. Constructed from high tensile precision die-cast aluminum, the CA8854P-DU is built to withstand various climatic conditions, featuring stable hydraulic door check fluid for consistent lubrication. Its attractive anodized dark bronze finish complements a wide range of architectural styles. This model is equipped with a regular arm, while optional hold-open and fusible link hold-open arms are available, adjustable from 100° to 180° of door opening. The CA8854P-DU combines functionality, style, and durability, making it an essential component for any secure door system.

Surface Mount Door Closer, Parallel Arm, Size 4, DU/SP313 Anodized Dark Bronze

Features:

• Complies with ANSI A156.4 Grade 1.
• Underwriters' Laboratories Inc. Listed. Listed for UL10C for positive pressure and certified to conform to UBC 7.2 (1997) BS476 for Fire Safety.
• Range of Sizes :
• Standard: CA8851, CA8852, CA8853, CA8854 and CA8855
• Back-Check: CA8883, CA8884 and CA8885
• Dual Speed Control Valves : Closing and Latching speeds controlled by separate regulating valves, fully adjustable after installation.
• CA8800 Series has adjustable Back-Check function controlled by a separate regulating valve, fully adjustable after installation.
• Universal application. Non-handed for Standard, Top Jamb, or Parallel Arm installation.
• The CA8850 and CA8880 Series are "fixed" spring door closers with no spring power adjustment.
• Rack and pinion control mechanism contained in a high tensile precision die cast aluminum housing.
• Stable hydraulic door check fluid for any climatic operation and provides constant lubrication.
• Furnished with regular arm. Hold-open and fusible link hold-open arms optional. Hold-open arms are adjustable from 100-deg to 180-deg of door opening.
• CA8850/CA8880 door closers are contained in four body casting sizes. Spring size 1 is contained in a Size 1 body casting, spring size 2 is contained in a Size 2 body casting, spring size 3 is contained in a Size 3 body casting, and spring sizes 4 and 5 are contained in a Size 4 body casting.
• Attractive Baked Enamel finishes:
• AL - Aluminum
• DU - Storefront Bronze

Closer Overview:
