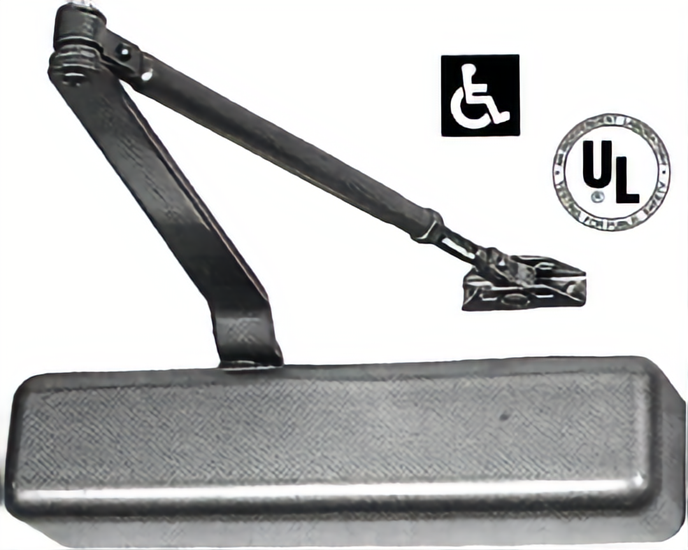

Calibre CA9901-DU ADA Surface Mount Door Closer Tri-Pack Arm, Size 2-5, Dark Bronze

Calibre Door Closers CA9901-DU ADA Surface Mount Door Closer is designed to provide reliable performance while ensuring compliance with accessibility standards. This model features a tri-pack arm and is finished in a stylish anodized dark bronze, making it both functional and aesthetically pleasing. This door closer meets ANSI A156.4 Grade 1 standards, ensuring quality and durability. Its barrier-free operation complies with Federal Accessibility Standards (ADA) and ANSI A117.1, making it ideal for various commercial and residential applications. The adjustable spring tension allows for a range of sizes from 2 to 5, accommodating diverse door weights. Equipped with dual speed control valves, the CA9901-DU allows for precise adjustments of closing and latching speeds, enhancing user convenience. Its versatile design is non-handed, allowing for standard, top jamb, or parallel arm installations. The high tensile precision die-cast aluminum housing houses a reliable rack and pinion control mechanism. Furnished with a regular arm, this door closer also offers optional hold-open and fusible link hold-open arms, adjustable from 100 to 180 degrees of door opening. The stable hydraulic door check fluid ensures consistent operation in varying climates, providing longevity and ease of maintenance. With an overall height of 4-9/16 inches and a projection of 2-9/16 inches from the door, the CA9901-DU is a robust choice for enhancing any entryway.

ADA Surface Mount Door Closer, Tri-Pack Arm, Size 2-5, DU/SP313 Anodized Dark Bronze

Features:

• Complies with ANSI A156.4 Grade 1.
• Barrier Free Operation to comply with Federal Accessibility Standards (ADA) and ANSI A117.1 (4,13,11).
• Underwriters' Laboratories Inc. Listed. Listed for UL10C for positive pressure and certified to conform to UBC 7.2 (1997) BS476 for Fire Safety.
• ADA Handicap multi-sized closers with adjustable spring tension for a range of sizes after installation
• Dual Speed Control Valves : Closing and Latching speeds controlled by separate regulating valves, adjustable after installation.
• Universal application. Non-handed for Standard, Top Jamb, or Parallel Arm installation.

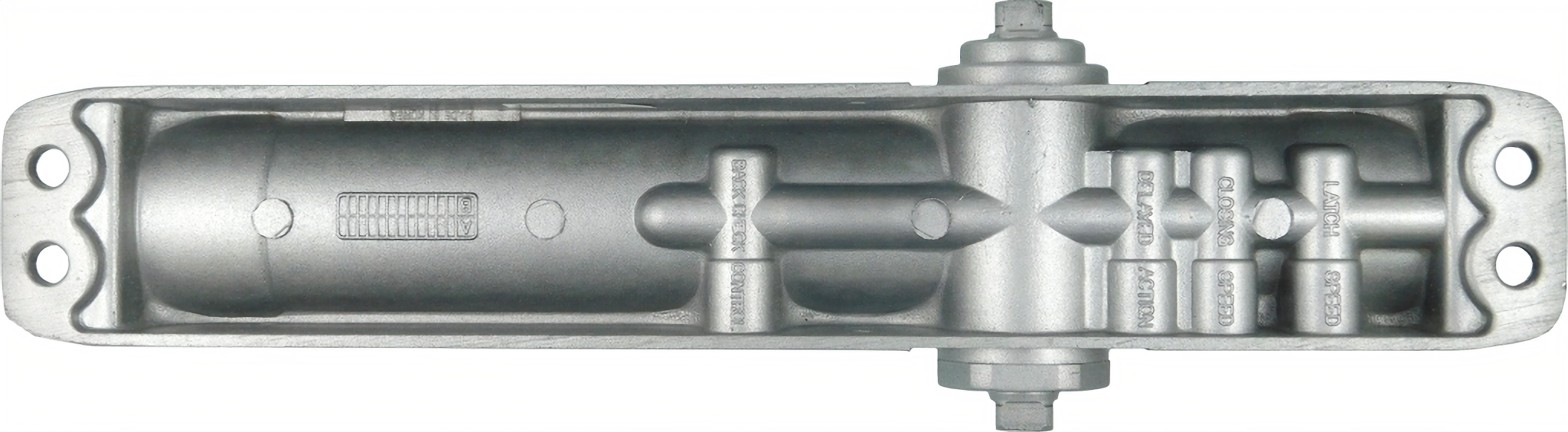

• Rack and pinion control mechanism contained in a high tensile precision die cast aluminum housing.
• Stable hydraulic door check fluid for any climatic operation and provides constant lubrication.
• Furnished with regular arm. Hold-open and fusible link hold-open arms optional. Hold-open arms are adjustable from 100-deg to 180-deg of door opening.
• Series CA9900 furnished with high impact molded PVC Dress Cover (door closer body casting can be used without the Dress Cover permitting installation on most modern glass and aluminum door without adaptors). Parallel Bracket included.
• Attractive Baked Enamel finishes :
• AL - Aluminum
• DU - Storefront Bronze
• Optional US3 Bright Brass and US26 Bright Chrome are available.

Functions:

• CA9901: 8 1/2lb Opening Force to Size 5. Adjustable spring power with fully adjustable Back-Check controlled by a separate regulating valve, adjustable after installation.
• CA9903: 5lb Opening Force to Size 4. Adjustable spring power with both adjustable Back-Check and adjustable Delayed Closing Action controlled by separate, regulating valves, adjustable after installation.

Closer Overview:

• Length of Closer: 12-1/8"
• Horizontal Mounting Holes: 11-3/32"
• Vertical Mounting Holes: 3/4"
• Overall Height: 4-9/16"
• Top of Door to Bottom of Closer: 3-5/16"
• Height of Closer: 2-13/16"
• Projection from Door: 2-9/16"
