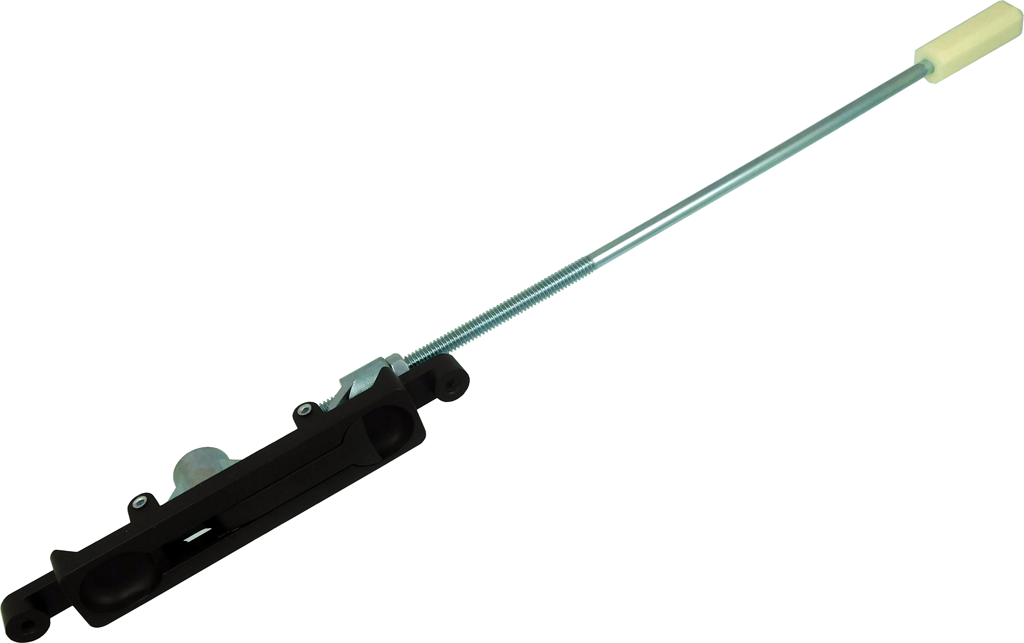

Calibre FL1002-DU 1/8in Offset Flush Bolt with Guide, DU/SP313 Anodized Dark Bronze

Calibre Door Closers FL1002-DU 1/8in Offset Flush Bolt with Guide, DU/SP313 Anodized Dark Bronze offers a reliable and secure locking solution for non-weather-stripped door stiles. This standard flush bolt features a 1/8" offset and a 5/8" throw when activated, ensuring robust performance in various applications. Designed with a radius flushbolt face measuring 15/16" x 4-1/4", it seamlessly integrates into your door system while providing a polished appearance. Equipped with a positive "U" joint actuator, the FL1002-DU guarantees secure locking every time, enhancing the security of your premises. The flushbolt rod length is tailored for a 12" centerline installation, ensuring a proper fit. The square nylon rod tip with beveled corners fits perfectly into a 1/2" round hole, making installation straightforward and hassle-free. Included with this flush bolt is the FG-1000 standard flushbolt guide and screws, ensuring that you have everything needed for a complete installation. The anodized dark bronze finish not only adds an elegant touch but also provides durability against wear and tear. Choose the Calibre Door Closers FL1002-DU for an efficient, stylish, and dependable locking solution that meets the demands of today’s building professionals and discerning homeowners.

1/8in Offset Flush Bolt with Guide, DU/SP313 Anodized Dark Bronze

• FL-1002: Standard Flushbolt, 1/8" Offset for use on a non weather-stripped door stile. Standard 5/8" throw when activated.
• FL-1004: Standard Flushbolt, 1/4" Offset for use on a weather-stripped door stile. Standard 5/8" throw when activated.
• FL-1006: Standard Flushbolt, 3/16" Offset for special application as required. Standard 5/8" throw when activated.
• FL-2002: Optional Flushbolt, 1/8" Offset for use on a non weather-stripped door stile. Optional 7/8" throw when activated.
• FL-2004: Optional Flushbolt, 1/4" Offset for use on a weather-stripped door stile. Optional 7/8" throw when activated.
• FL-3001: Special Kawneer Type Flushbolt, 1/8" Offset for use on a non-weather-stripped door stile. No Flushbolt Guide.

Features:

• Radius Flushbolt Face measuring 15/16" x 4-1/4".
• Positive "U" joint actuator for secure locking.
• Flushbolt Rod length for 12" Centerline of face Installation.
• Square Nylon Rod Tip with beveled corners fits in 1/2" round hole.
• Includes FG-1000 Standard Flushbolt Guide and screws.
• Finishes available:
• AL - Baked Satin Aluminum Paint
• BK - Baked Black Paint
• DU - Baked Storefront Bronze Paint

Resources

• Cut Sheet
