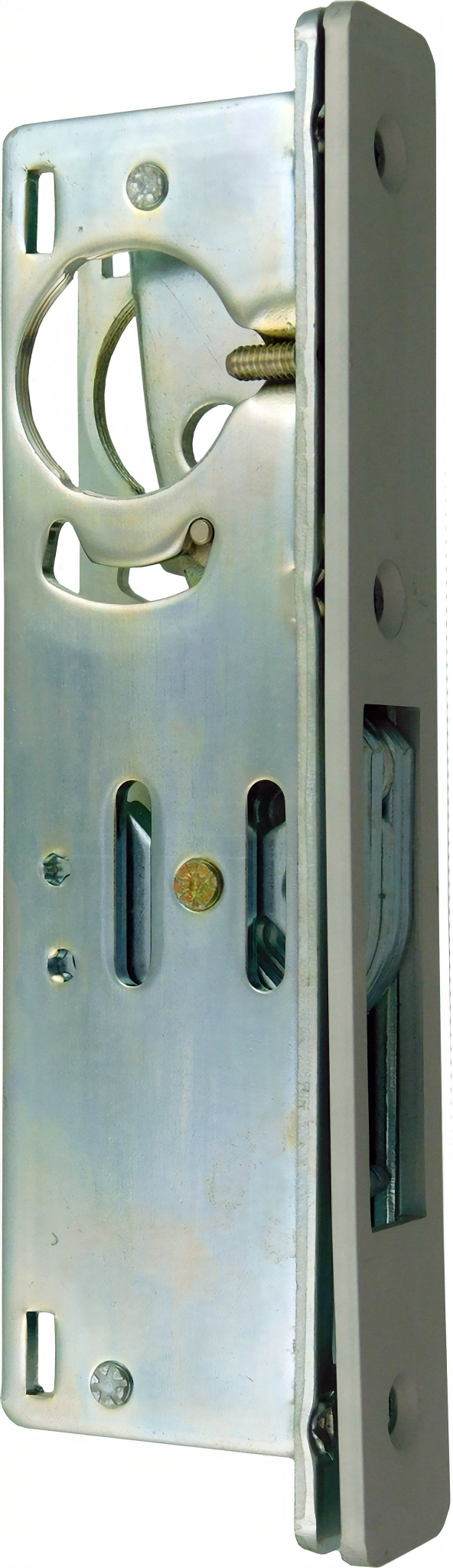

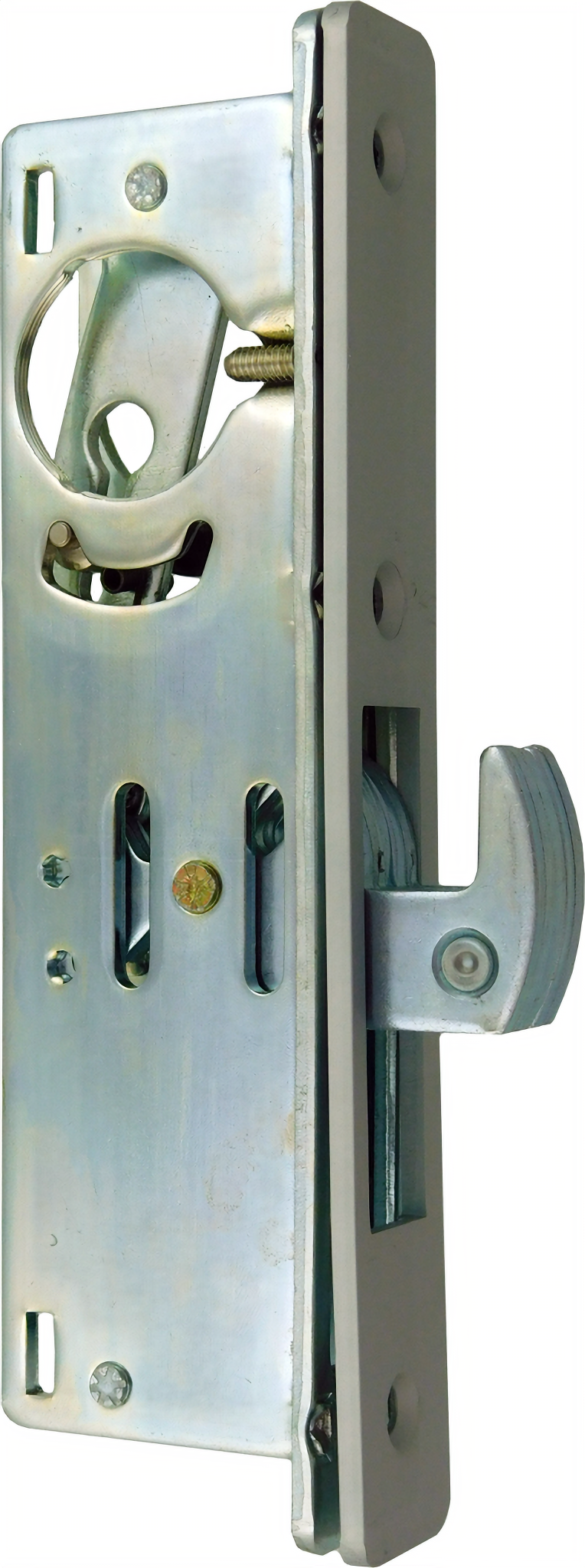

Calibre LS2001-118-AL 1-1/8in Hook Bolt, Flat Faceplate, AL/SP28 Anodized Satin Aluminum

Calibre Door Closers LS2001-118-AL 1-1/8in Hook Bolt features a robust design that enhances security for your glass aluminum hardware needs. This meticulously crafted hook bolt is constructed from 5-ply laminated steel, incorporating a hardened roller pin within a case-hardened center ply, ensuring maximum resistance against tampering and forced entry. Designed for versatility, the LS2001-118-AL accommodates cylinder backsets of 1-1/2", 1-1/8", and 31/32", making it suitable for a variety of installations. The lock functions seamlessly with standard 1-5/32" Mortise Key or Thumbturn Cylinders, featuring the AR MS-Type cam for reliable locking performance. This bolt is equipped with a sleek flat faceplate and comes in an elegant anodized satin aluminum finish, which adds a touch of sophistication to your security solutions. Additional color options include painted black and storefront bronze, allowing you to choose a finish that complements your design aesthetic. Whether you're a building professional or a discerning homeowner, the Calibre LS2001-118-AL offers both practicality and style, ensuring your property is secure without sacrificing visual appeal. With the confidence of Calibre’s quality, you can trust this locking hardware for your next project.

1-1/8in Hook Bolt, Flat Faceplate, AL/SP28 Anodized Satin Aluminum

Features:

• Cylinder backsets available: 1-1/2", 1-1/8", and 31/32". (LS-3000: 1-1/8" Backset Only).
• Bolts made of 5-ply laminated steel with a hardened roller pin inserted in a case hardened center ply for maximum security.
• Locks use standard 1-5/32"" Mortise Key or Thumbturn Cylinders with AR MS-Type cam
• Finishes available:
• AL - Painted Satin Aluminum
• BK - Painted Black
• DU - Painted Storefront Bronze

Resources

• Cut Sheet
